ncd.io

"NCD-IO, Cloud IoT Gateway"

Industrial Iot Wireless Sensors: 산업용 원거리 무선 IoT 센서.

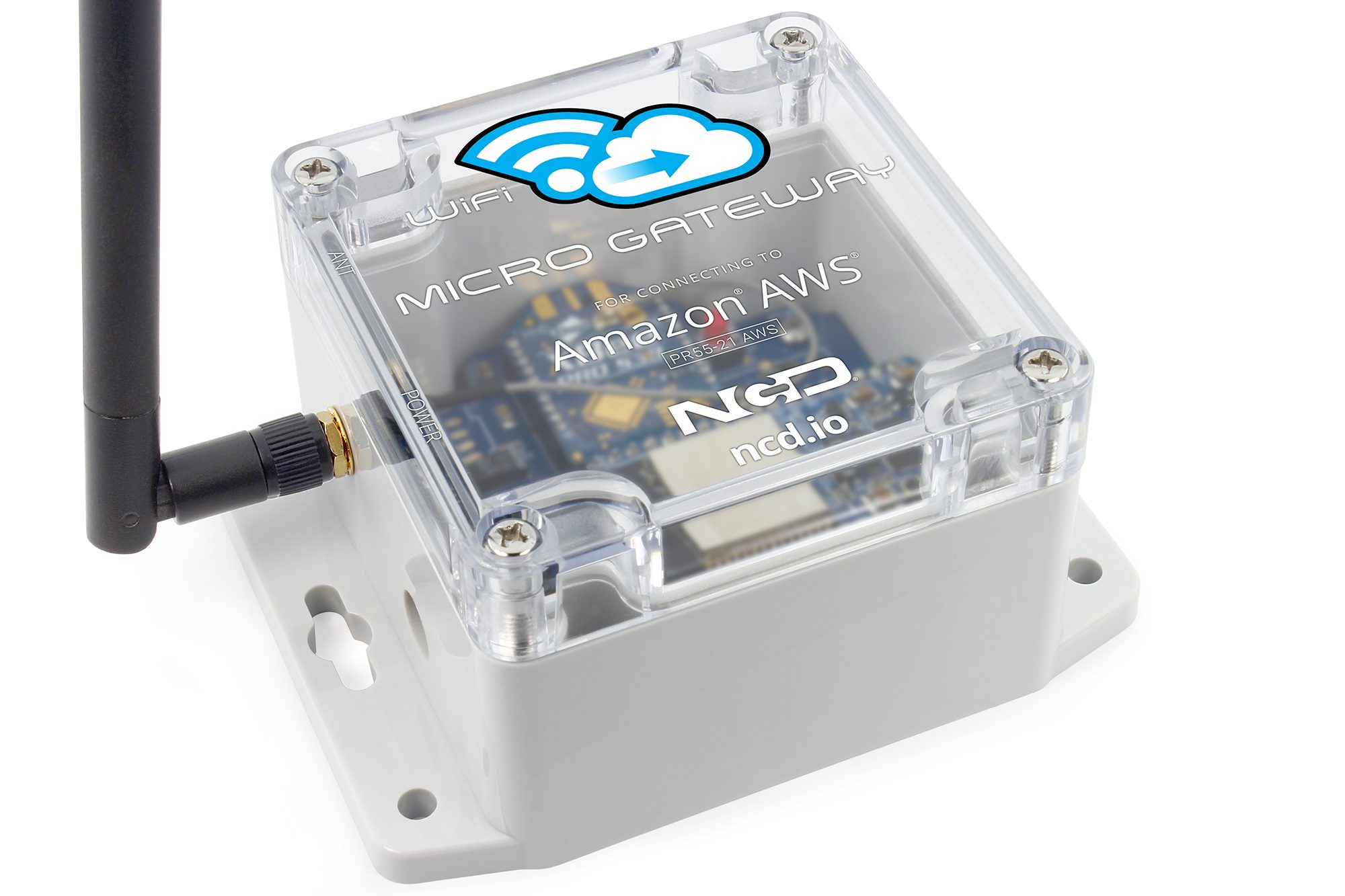

AWS Gateway – Wi-Fi Micro Gateway for AWS

AWS Gateway for Connection to NCD IoT Sensorsr
Plug-and-Play Setup Requires Only Wi-Fi and AWS® Credentials
SoftAP Web-Page Configuration of Gateway and AWS® Settings
Up to 2-Mile Wireless Range Between Sensors and Gateway
Up to 10 Meter Wireless Range Between Gateway and Wi-Fi Router
Encrypted Communications Between Sensors and Gateway
Encrypted Communications Between Gateway and Wi-Fi Connection
Encrypted Communications Between Gateway and AWS®
Automatically Discovers Sensors & Report to AWS® with Zero Setup
Integrated Web-Page Allows Configuration of Remote Sensors
Integrated Web-Page Displays Incoming Sensor Data
Supports DHCP or Static IP Managed Wireless Networks
Pushes Sensor Data to Device Twin and Device to Cloud Messages
Compatible with All NCD Wireless Sensors
Allows Multiple Gateways to Co-Exist for Redundant Data
Over the Air Firmware Updates Coming Soon

Azure Gateway – Wi-Fi Micro Gateway for Microsoft® Azurer

Azure Gateway for Connection to NCD IoT Sensors
Plug-and-Play Setup Requires Only Wi-Fi and Azure® Credentials
SoftAP Web-Page Configuration of Gateway and Azure® Settings
Up to 2-Mile Wireless Range Between Sensors and Gateway
Up to 10 Meter Wireless Range Between Gateway and Wi-Fi Router
Encrypted Communications Between Sensors and Gateway
Encrypted Communications Between Gateway and Wi-Fi Connection
Encrypted Communications Between Gateway and Azure®
Automatically Discovers Sensors & Report to Azure® with Zero Setup
Integrated Web-Page Allows Configuration of Remote Sensors
Integrated Web-Page Displays Incoming Sensor Data
Supports DHCP or Static IP Managed Wireless Networks
Pushes Sensor Data to Device Twin and Device to Cloud Messages
Compatible with All NCD Wireless Sensors
Allows Multiple Gateways to Co-Exist for Redundant Data
Over the Air Firmware Updates Coming Soon

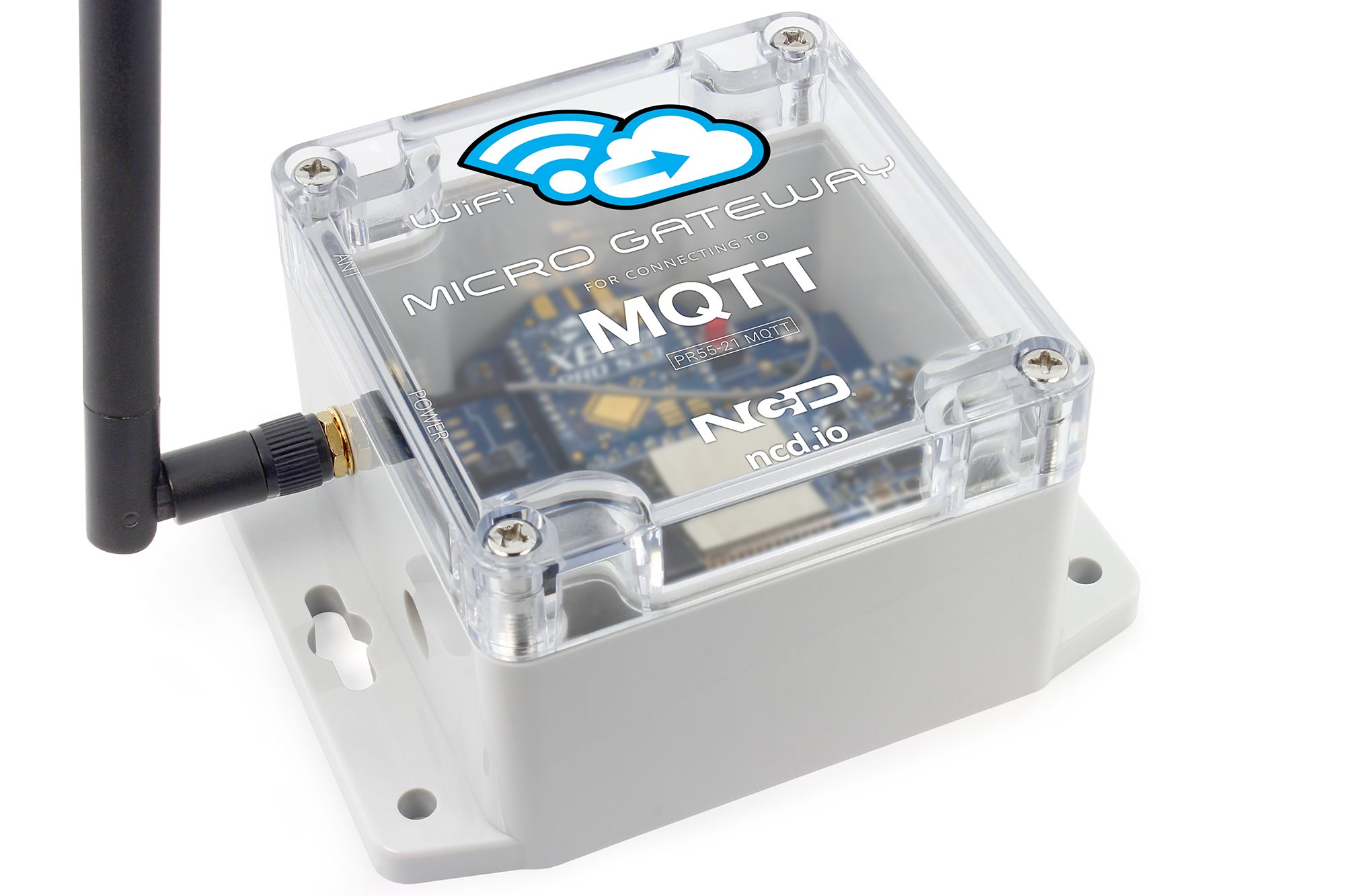

MQTT Gateway – Wi-Fi Micro Gateway for MQTT

MQTT Gateway for Connection to NCD IoT Sensors
Plug-and-Play Setup Requires Only Wi-Fi and MQTT Login Credentials
SoftAP Web-Page Configuration of Gateway and MQTT Settings
Up to 2-Mile Wireless Range Between IoT Sensors and Gateway
Up to 10 Meter Wireless Range Between Gateway and Wi-Fi Router
Encrypted Communications Between IoT Sensors and Gateway
Encrypted Communications Between Gateway and Wi-Fi Connection
Encrypted Communications Between Gateway and MQTT
Automatically Discovers IoT Sensors & Report to MQTT with Zero Setup
Integrated Web-Page Allows Configuration of Remote IoT Sensors
Integrated Web-Page Displays Incoming IoT Sensor Data
Supports DHCP or Static IP Managed Wireless Networks
Automatically Registers Sensors and Pushes Sensor Data to MQTT
Compatible with All NCD Wireless IoT Sensors
Allows Multiple Gateways to Co-Exist for Redundant Data
Over the Air Firmware Update Support Coming Soon

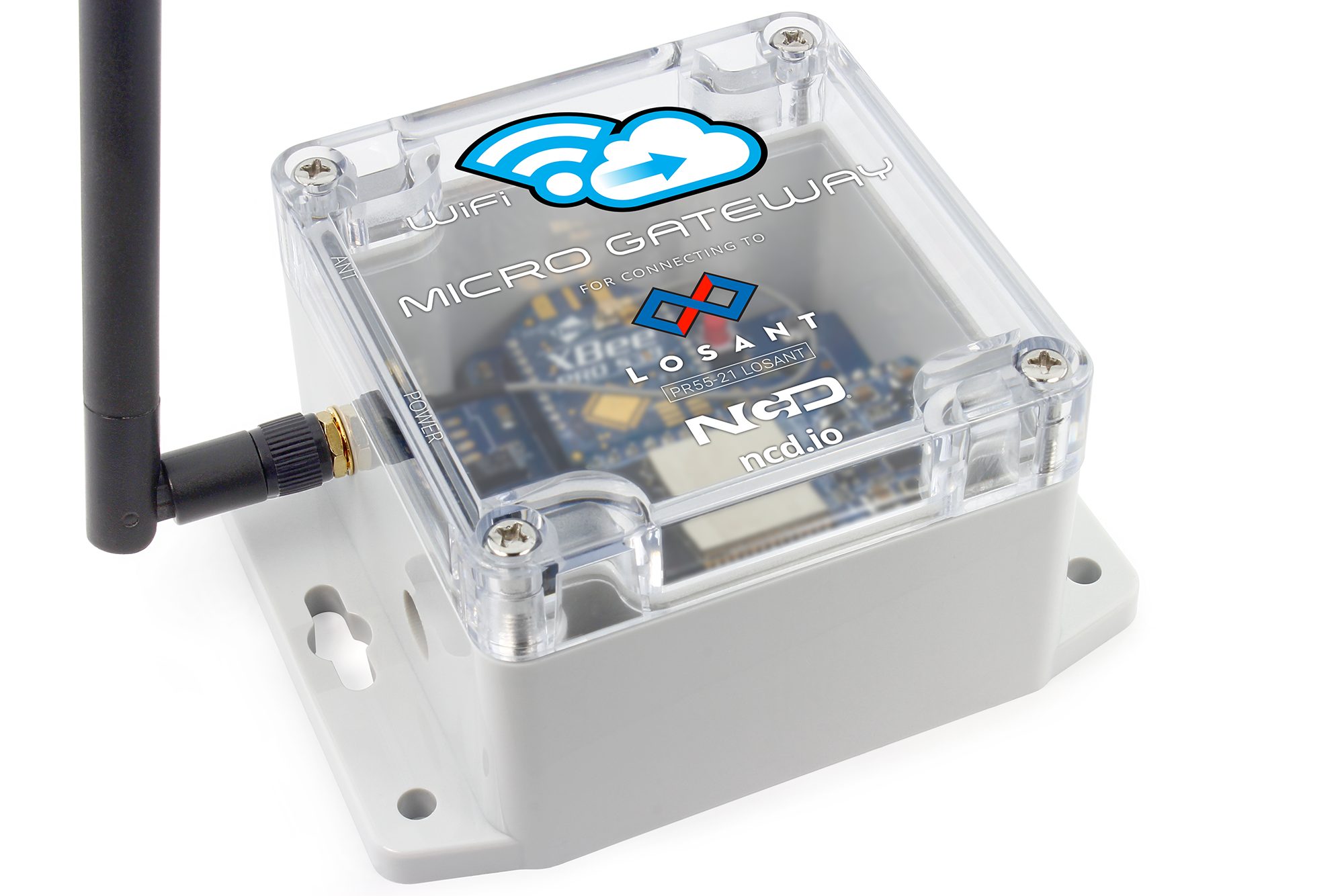

Wi-Fi Micro Gateway for Connection to Losant IoT

Plug-and-Play Setup Requires Only Wi-Fi and Losant Credentialss
SoftAP Web-Page Configuration of Gateway and Losant Settings
Up to 2-Mile Wireless Range Between IoT Sensors and Gateway
Up to 10 Meter Wireless Range Between Gateway and Wi-Fi Router
Encrypted Communications Between IoT Sensors and Gateway
Encrypted Communications Between Gateway and Wi-Fi Connection
Encrypted Communications Between Gateway and Losant
Automatically Discovers IoT Sensors & Report to Losant with Zero Setup
Integrated Web-Page Allows Configuration of Remote IoT Sensors
Integrated Web-Page Displays Incoming IoT Sensor Data
Supports DHCP or Static IP Managed Wireless Networks
Automatically Registers Sensors and Pushes Sensor Data to Losant
Compatible with All NCD Wireless IoT Sensors
Allows Multiple Gateways to Co-Exist for Redundant Data
Over the Air Firmware Update Support Coming Soon

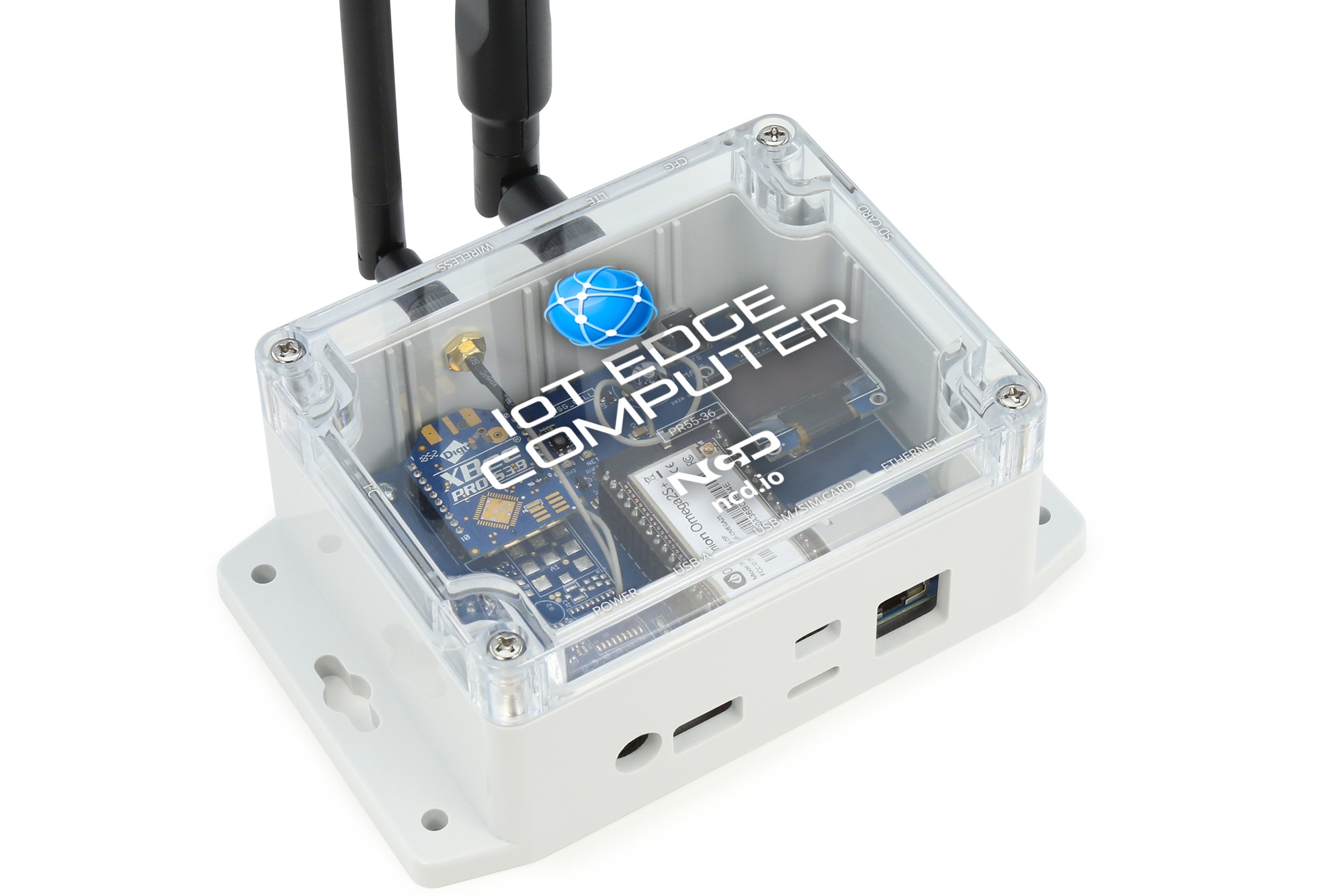

NCD Industrial IoT Edge Computer LTE Cellular Wi-Fi Ethernet

Communicates NCD Long Range Wireless IoT Sensors
Supports Wi-Fi Ethernet and Optional LTE Cellular Connectivity
Pre-installed Node-RED Libraries and Examples
USB Port for Optional Storage Expansion
Includes OLED Display for Connectivity Status
Send NCD IoT Sensor Data to AWS®, Azure®, MQTT, and more
Optional LTE Cellular Services from Verizon® and Hologram®
Supports Python and GCC Allowing Custom Applications
Soft AP Security Settings and Terminal Credentials
Powered by a Linux Based Embedded SBC
S3B: DigiMesh Wireless Communications Module
LTE: Ublox SARA-R410M-02B-02 LTE Cat M1/NB1/GPRS
Wi-Fi: Supports WEP64/128, AES, WPA, WPA2, WAP
Ethernet: Supports 10Mbps/100Mbps
Power 9-28VDC
This Product does NOT come with a SIM card
