ncd.io

"NCD-IO, 화학및 가스 센서"

Industrial Iot Wireless Sensors: 산업용 원거리 무선 IoT 센서.

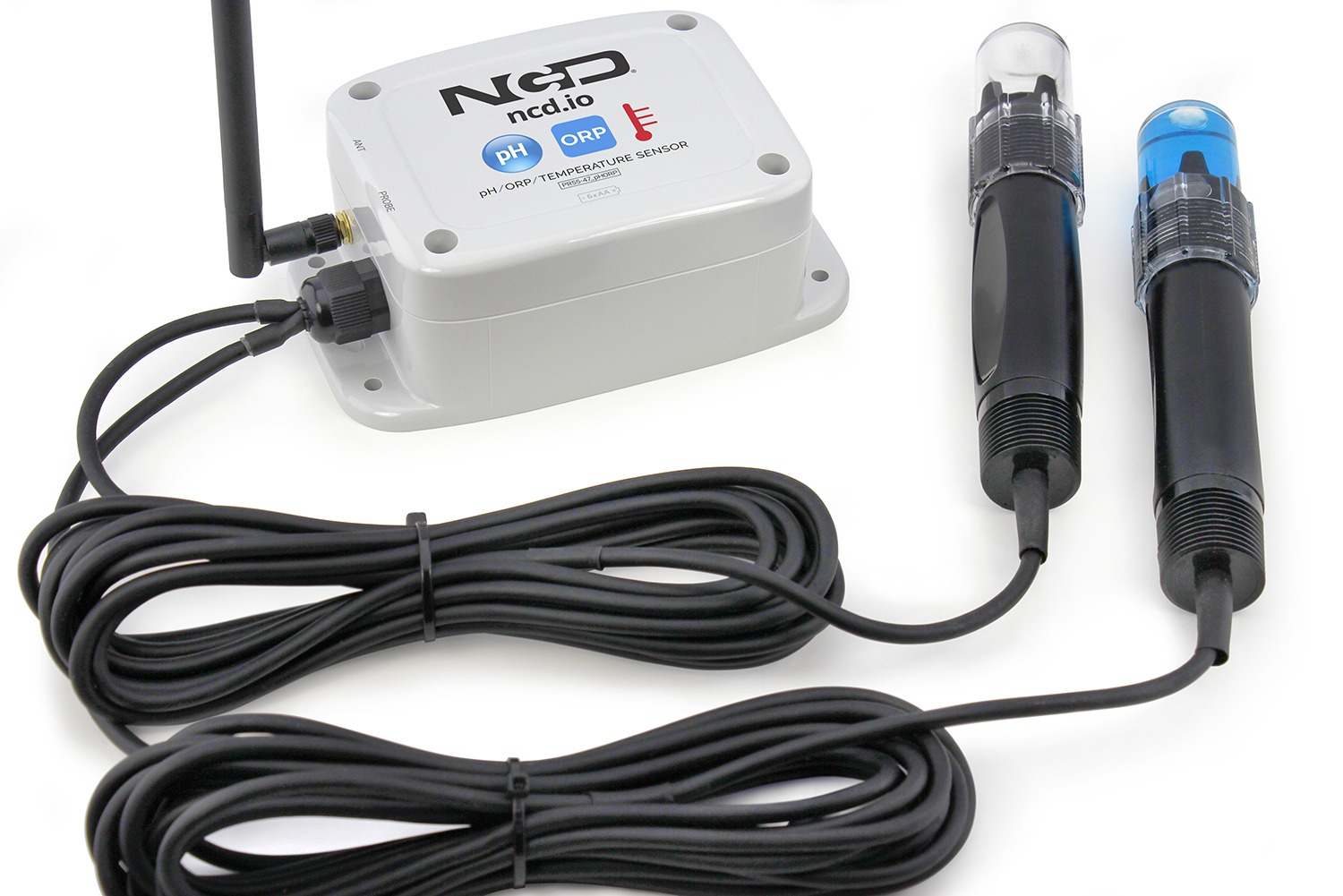

pH ORP Temperature Sensor

Industrial Grade Wireless pH, ORP, and Temperature Sensor
pH Measurement Accuracy ±2%pH and ±2°C temperature
ORP Measurement Accuracy ±2%ORP and ±2°C temperature
3/4 inch NPT connector housing
pH range: 0-14 pH
ORP range: -1500mV to +1500mV

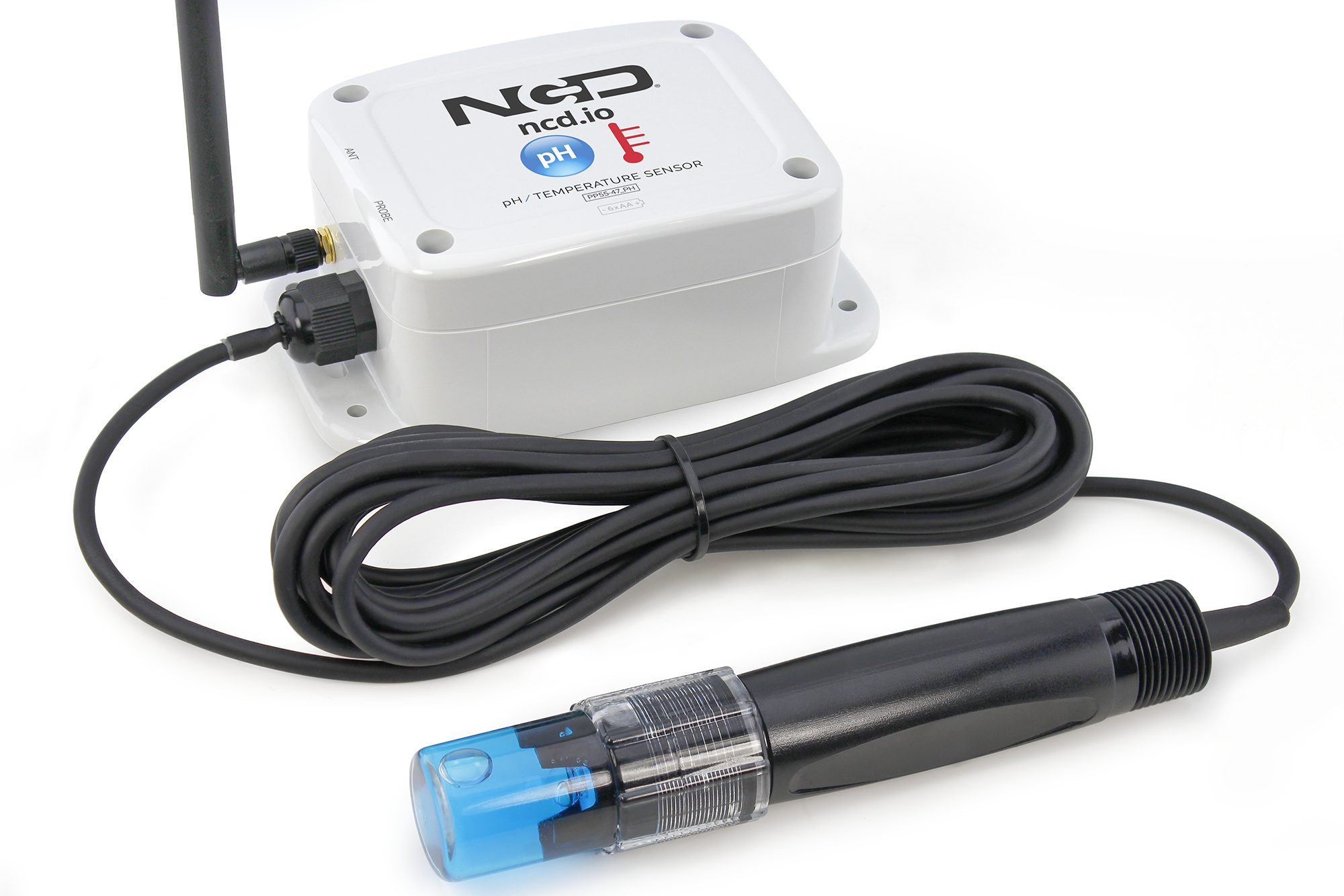

pH and Temperature Sensor

Industrial Grade Wireless pH and Temperature Sensor
pH Measurement Accuracy ±2%pH ±2°C temperature
3/4inch NPT connector Housing
pH Range 0-14 pH

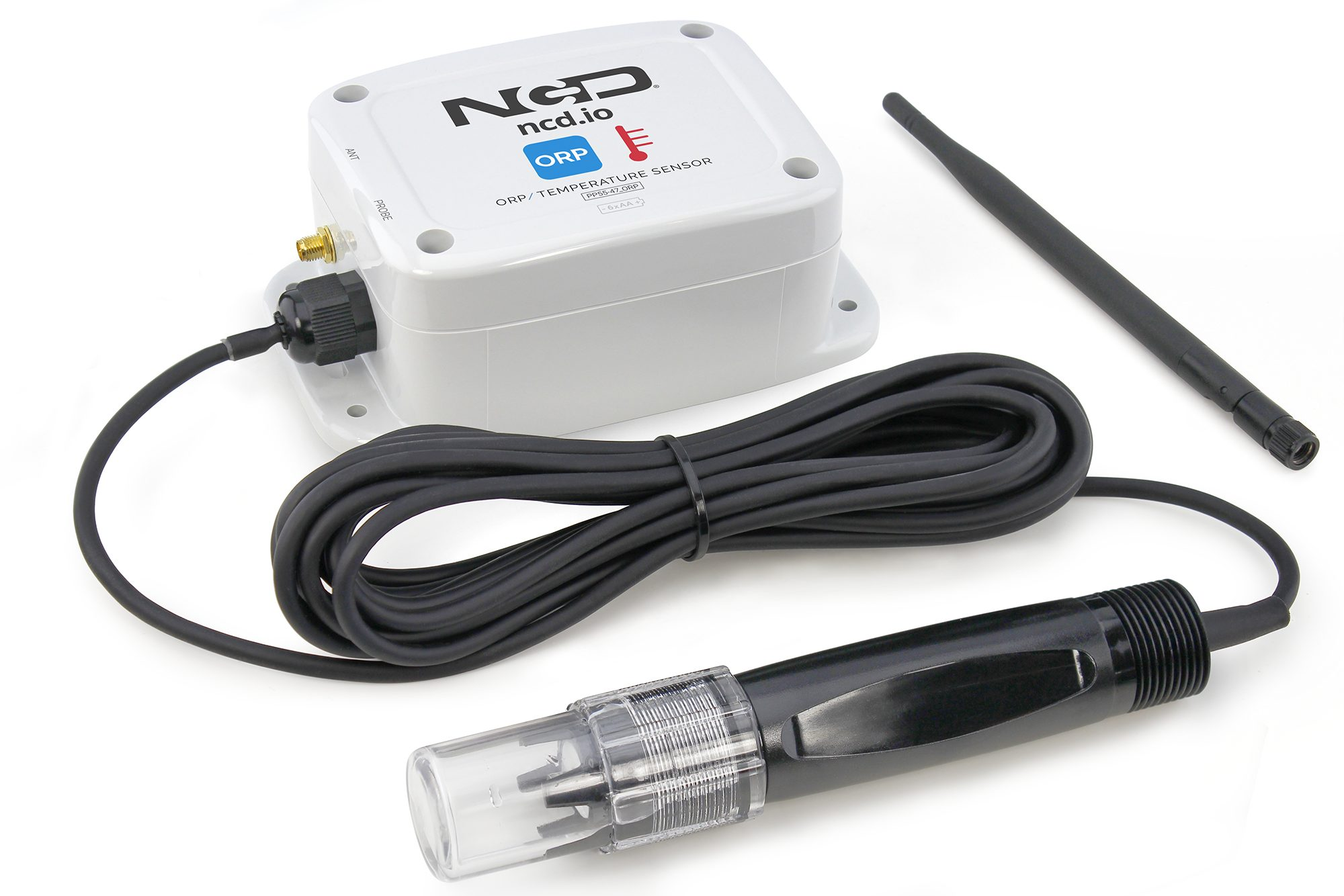

ORP and Temperature Sensor

Industrial Grade Wireless ORP and Temperature Sensor
ORP Measurement Accuracy ±2%ORP ±2°C temperature
3/4inch NPT connector Housing
ORP Range -1500mV to +1500mV

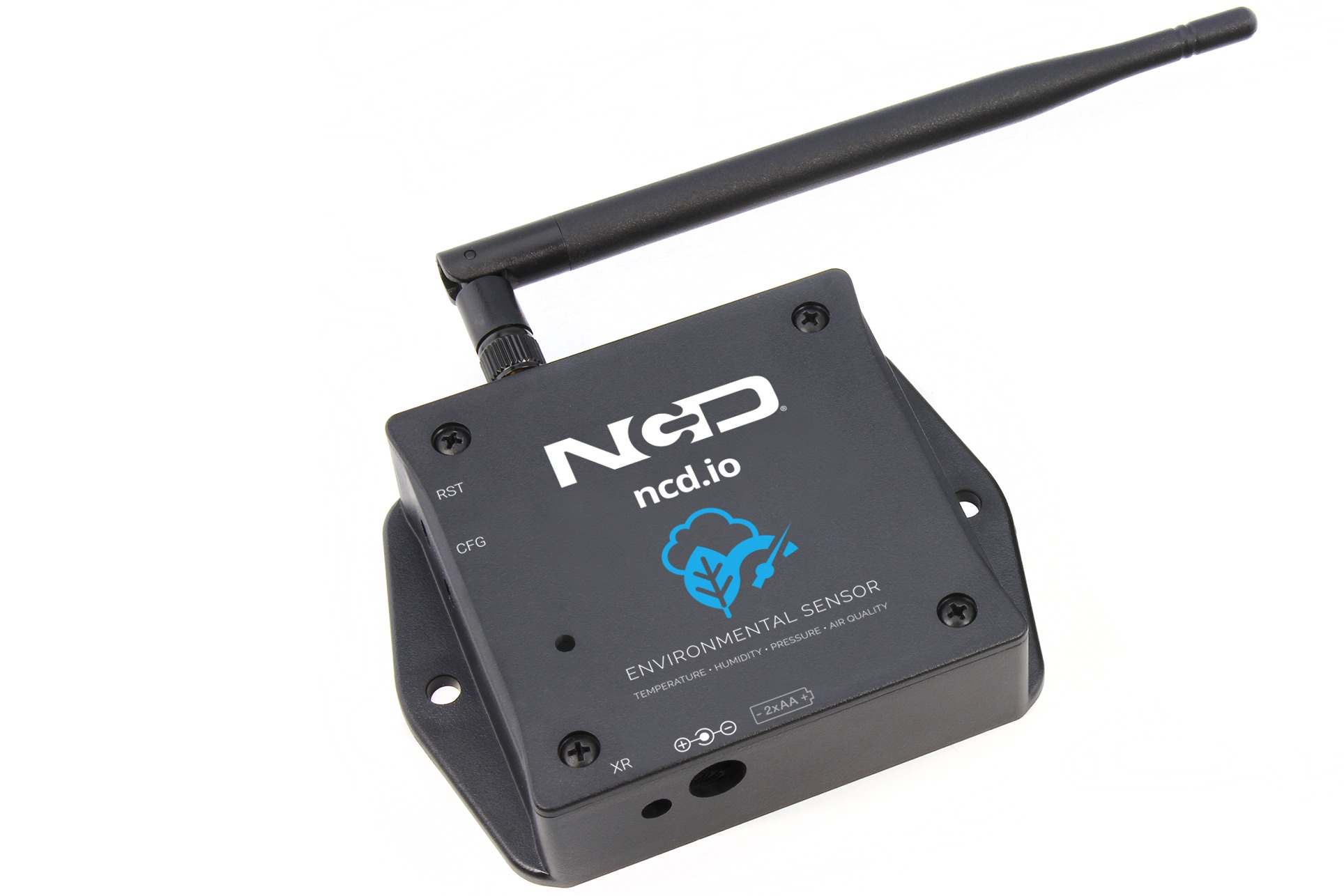

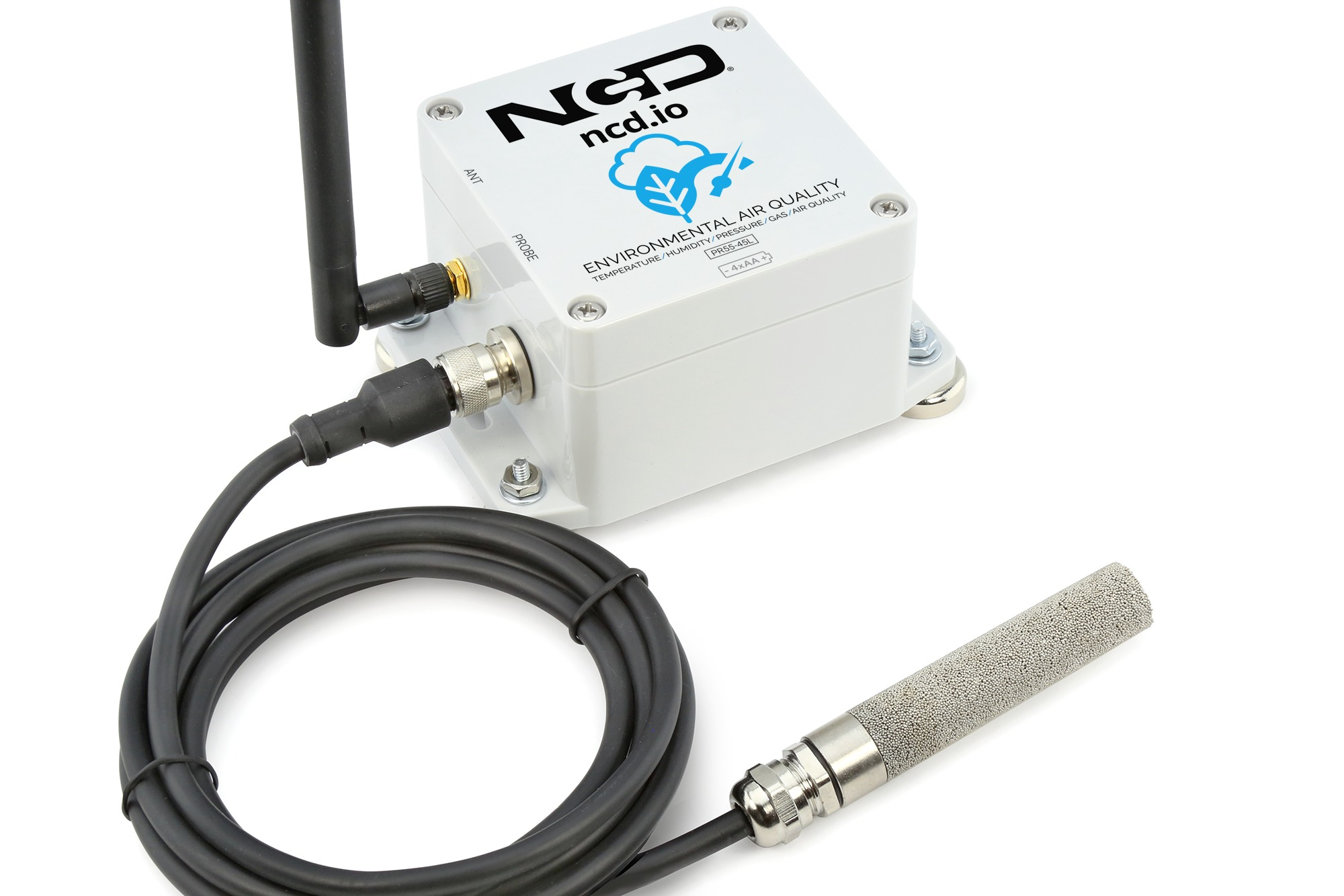

Environmental Temperature Humidity Pressure Air Quality Sensor

Industrial Grade Environment IoT Sensor for Monitoring
Temperature, Pressure, Humidity, Gas Resistance & Indoor Air Quality
Operating Temperature Range -40 to +85 °C
Operating Pressure Range 300 to 1100% hPa
Operating Humidity Range 0 to 100% r.H.
Gas Resistance Output in Ohms
Inbuilt Indoor Air Quality Metric Calculation with a 0-100 Range

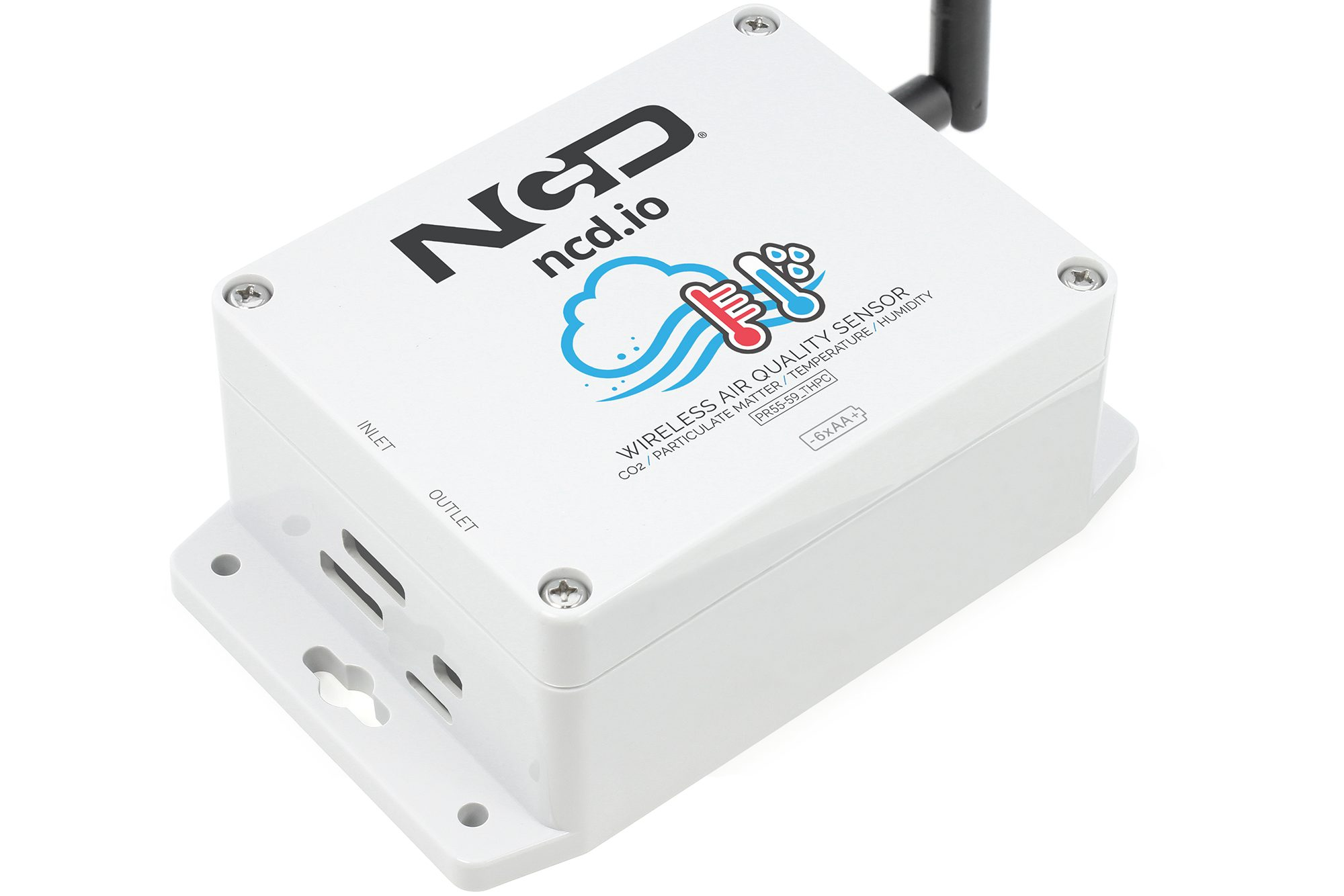

Air Quality CO2 Temperature Humidity Particulate Matter Sensor

Industrial Grade Sensor Mass Concentration Range 0-1000 μg/m^3
Mass Concentration Resolution of 1 μg/m^3
Mass Concentration Size Range PM1.0, PM2.5, PM4.0, PM10.0
Number Concentration Range 0 to 3000 1/cm^3
Number Concentration Size Range PM0.5, PM1.0, PM2.5, PM4.0, PM10.0
Industrial Grade CO2 Measurement Range 0 – 40’000 ppm
CO2 Measurement Accuracy ± (30 ppm + 3% MV)(25 °C, 400 – 10’000 ppm)
Temperature compensation of CO2 sensor signal

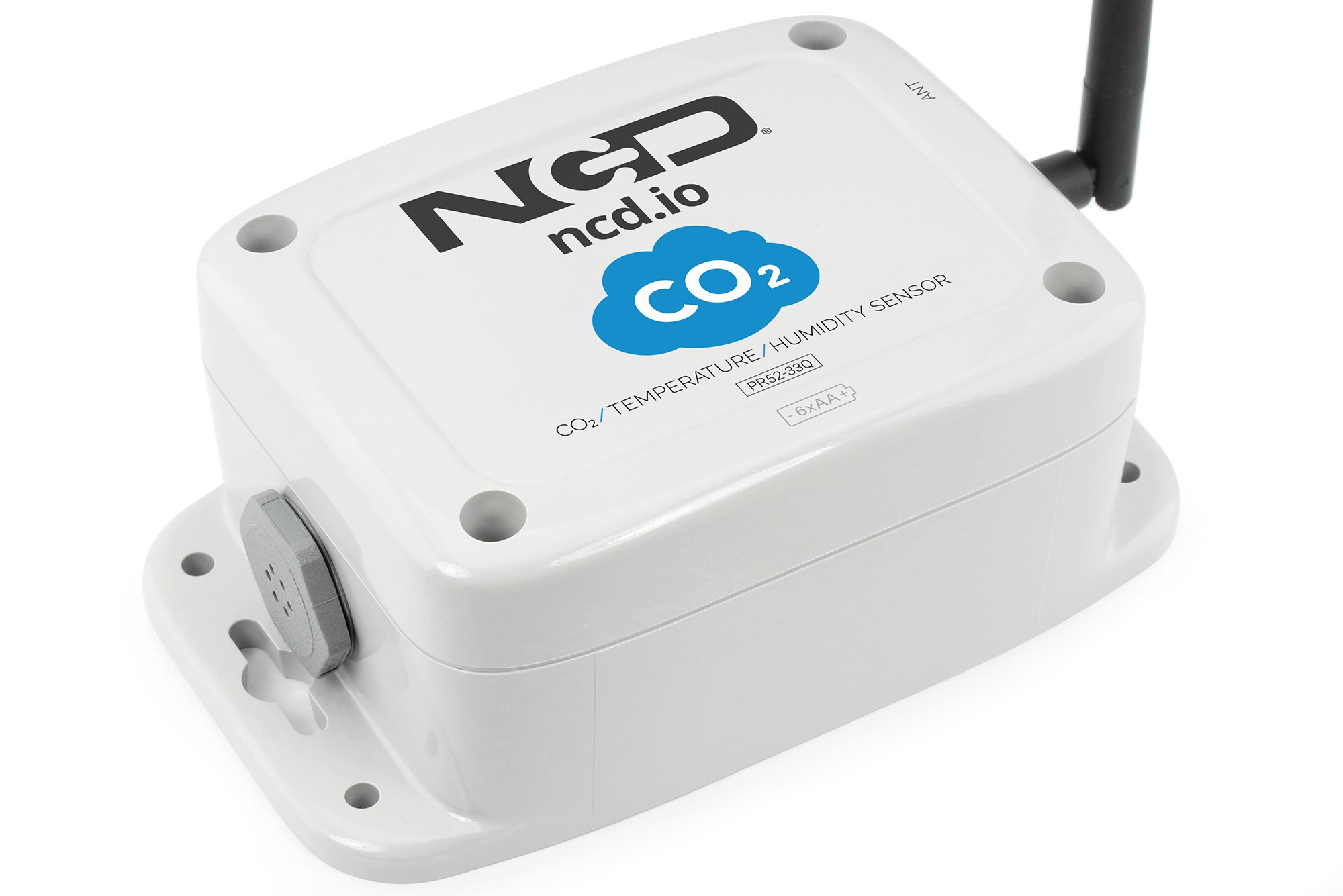

CO2 Temperature Humidity Sensor

Industrial Grade CO2 Measurement Range 0 – 40’000 ppm
CO2 Measurement Accuracy ± (50 ppm + 3% MV)(25 °C, 400 – 10’000 ppm)
Repeatability 10 ppm And Temperature stability
NDIR measurement principle
Temperature compensation of CO2 sensor signal

Environmental Temperature Humidity Pressure Air Quality Sensor

Industrial Grade Environment IoT Sensor for Monitoring
Temperature, Pressure, Humidity, Gas Resistance & Indoor Air Quality
Operating Temperature Range -40 to +85 °C
Operating Pressure Range 300 to 1100% hPa
Operating Humidity Range 0 to 100% r.H.
Gas Resistance Output in Ohms
Inbuilt Indoor Air Quality Metric Calculation with a 0-100 Range

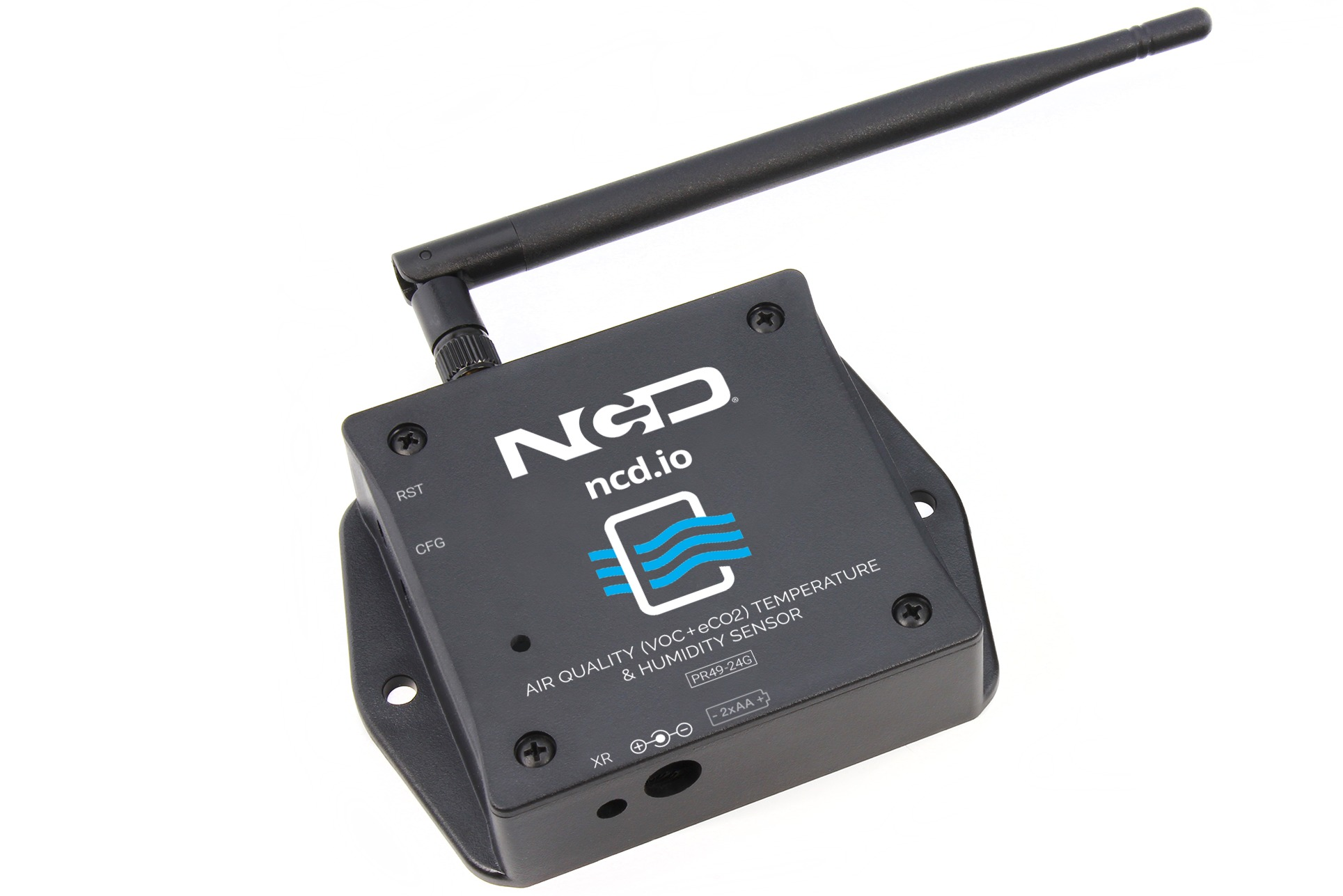

TVOC CO2eq Temperature Humidity Gas Sensor

Industrial Grade Gas and Temperature Humidity Sensor
High Resolution TVOC and CO2eq output
TVOC output range 0 to 60,000 ppb
CO2eq Output range 400 to 60,000 ppm
Low long term drift ( 1.3% of measurement value)
Industrial Temperature Range of -25°C [-13°F] to 85°C [185°F])
Industrial Grade Sensor with Range 0 to 100% RH
Resolution 0.04% RH/0.025°C with Accuracy of 2% RH/ 0.3°C

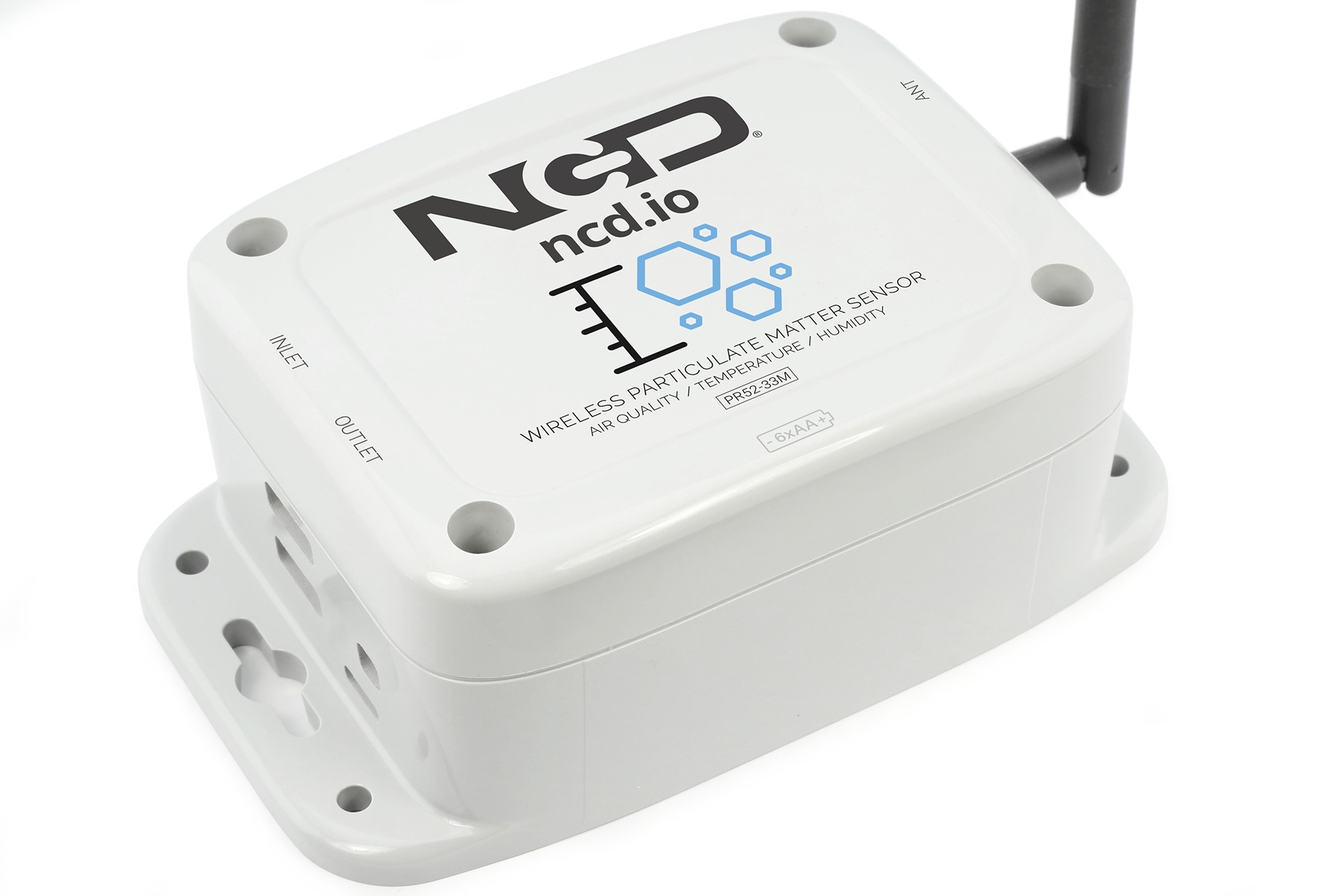

Particulate Matter Sensor

Industrial Grade Sensor Mass Concentration Range 0-1000 μg/m^3
Mass Concentration Resolution of 1 μg/m^3
Mass Concentration Size Range PM1.0, PM2.5, PM4.0, PM10.0
Number Concentration Range 0 to 3000 1/cm^3
Number Concentration Size Range PM0.5, PM1.0, PM2.5, PM4.0, PM10.0
Unique Long-Term Stability of up to 8 Years
Laser-Based Scattering Principle and Advanced Algorithms
Inbuilt Auto Cleaning Feature After Every 256 Transmissionsbr /> Industrial Grade Sensor with 0 to 100% RH / -25°C [-13°F] to 85°C [185°F])
Resolution 0.04% RH/0.025°C Accuracy 2% RH/ 0.3°C

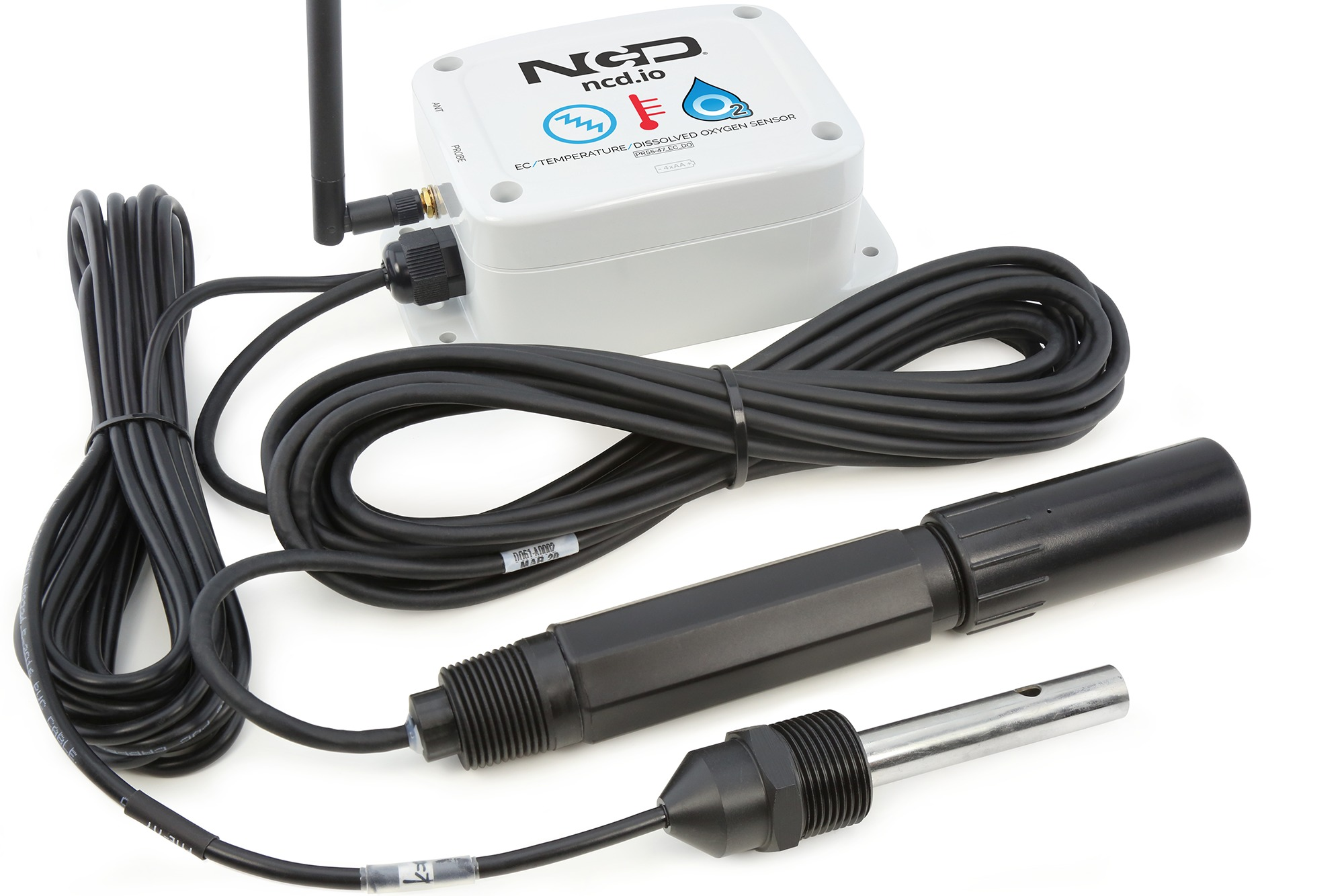

EC DO Sensor

Industrial Grade Wireless Electrical Conductivity Dissolved Oxygen DO and Temperature Sensor
EC and DO Measurement Accuracy ±2%FS ±2°C temperature
3/4inch NPT connector Housing
Stainless steel housing with Platinum Electrode
EC Range 10-2000uS/cm
DO Range 0-20mg/L
Cell Constant K = 1 ( other ranges available as well)

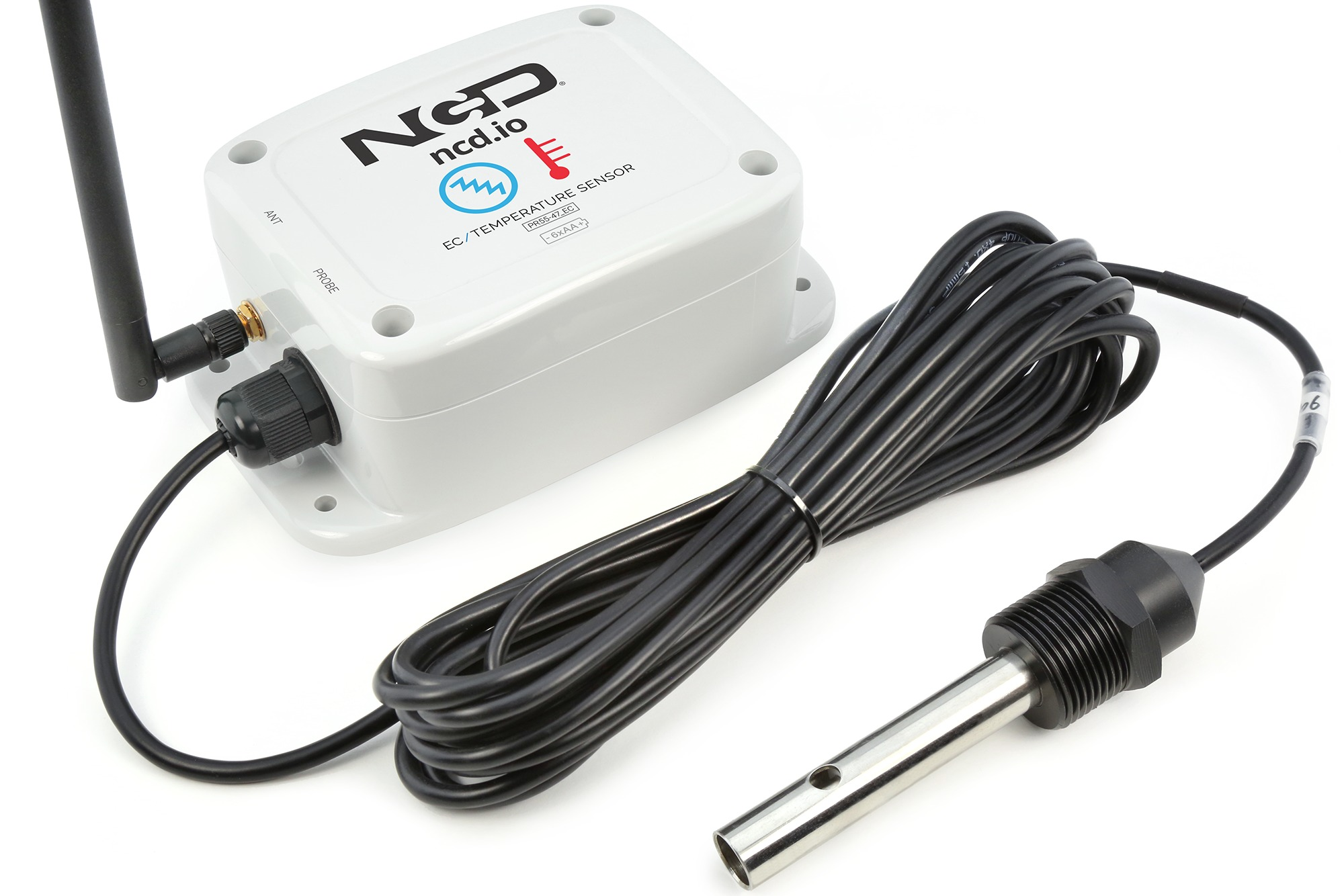

EC Sensor

Industrial Grade Wireless Electrical Conductivity and Temperature Sen
EC Measurement Accuracy ±2%FS ±2°C temperature
3/4inch NPT connector Housing
Stainless steel housing with Platinum Electrode
Two Probe Options:
Low EC Range 20-2000uS/cm
High EC Range 0-20,000uS/cm
Cell Constant K = 1 ( other ranges available as well)

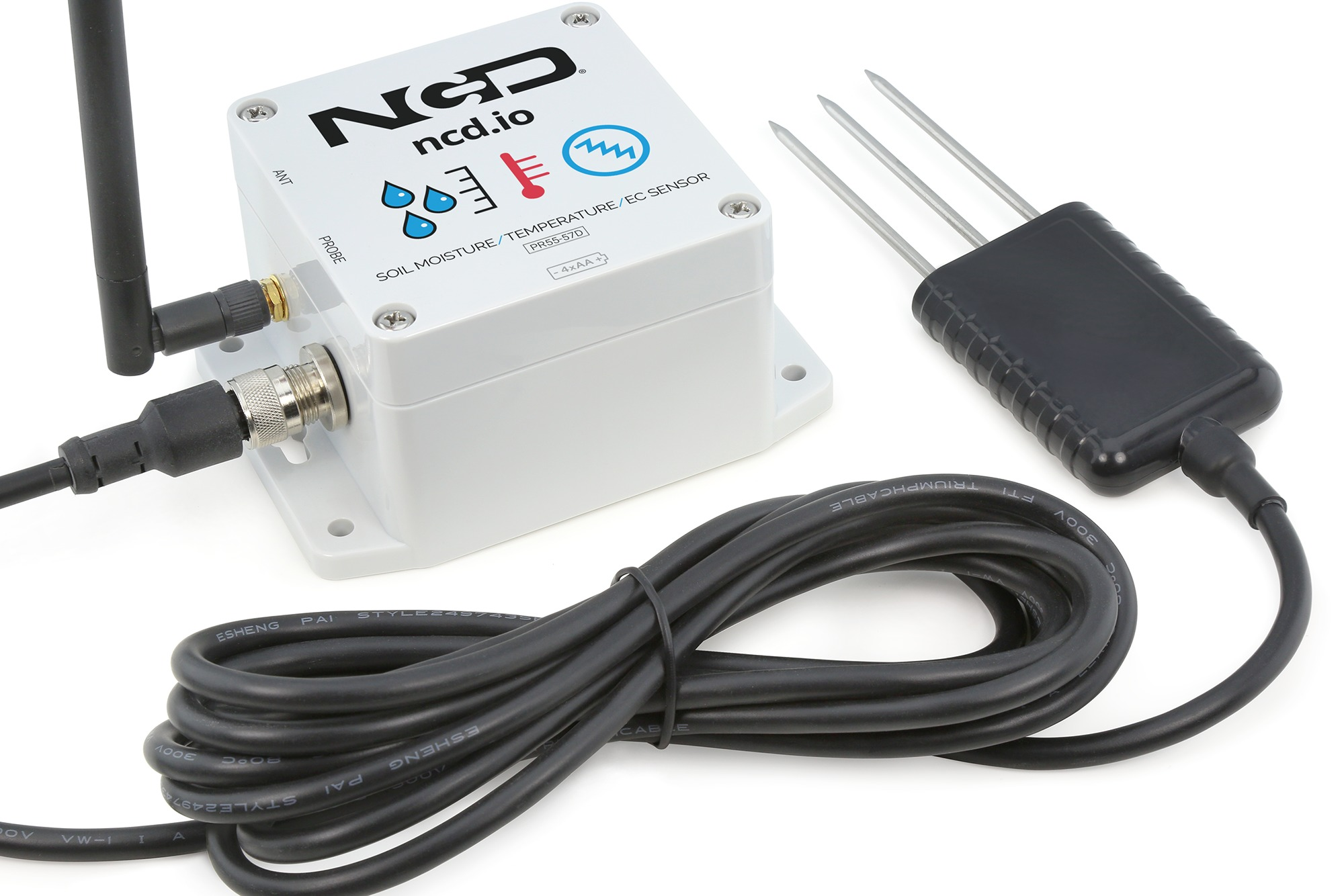

Soil Moisture Temperature EC Sensor

Wireless Soil Moisture Temperature EC Sensor for Indoor Outdoor Use
Industrial Grade 1 Channel IoT Soil Moisture Temperature EC Sensor
Temperature Range-30 ~ 70 ° C;0 ~ 100%( VWC)
EC Range 0~20000μs/cm ( garden Soil)
2 Mile Line-of-Sight Range with On-Board Antenna
Probe Does Not Corrode Over Time and Insensitive to Salinity
Measures Volumetric Water Content (VWC)

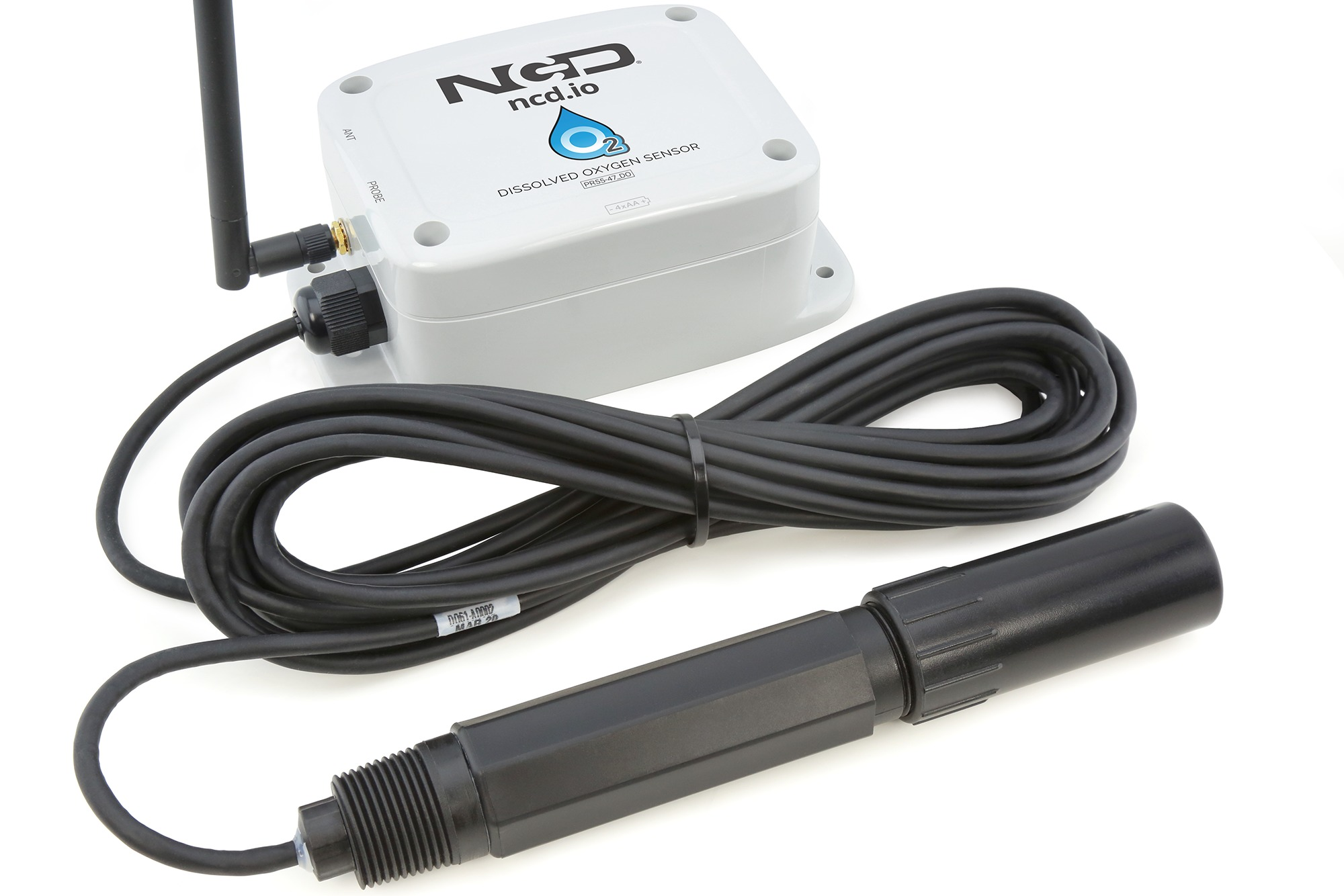

Dissolved Oxygen DO Sensor

Industrial Grade Wireless Dissolved Oxygen DO and Temperature Sensor
DO Measurement Accuracy ±2%FS ±2°C temperature
3/4inch NPT connector Housing
DO Range 0-20mg/L

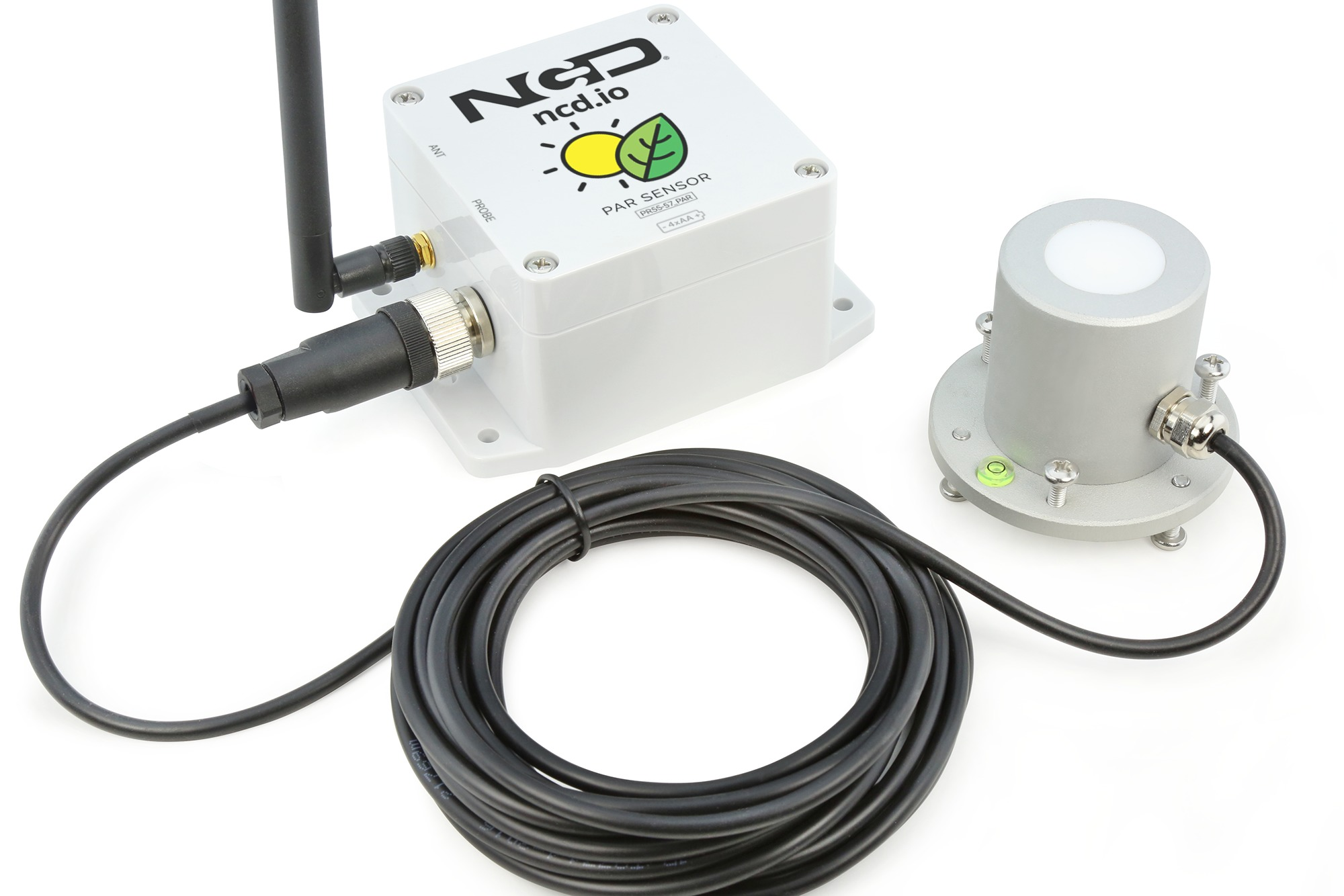

Photosynthetically Active Radiation PAR Sensor

Photosynthetically Active Radiation Sensor
PAR Sensor Measurement Resolution 1 μmol/m²•s
PAR Sensor Measurement Accuracy ±5%FS
Measurement Range 0-2000 um/m^*s
Spectral Range 400-700nm
Aluminum alloy housing
Cosine correction: up to 80° incident angle

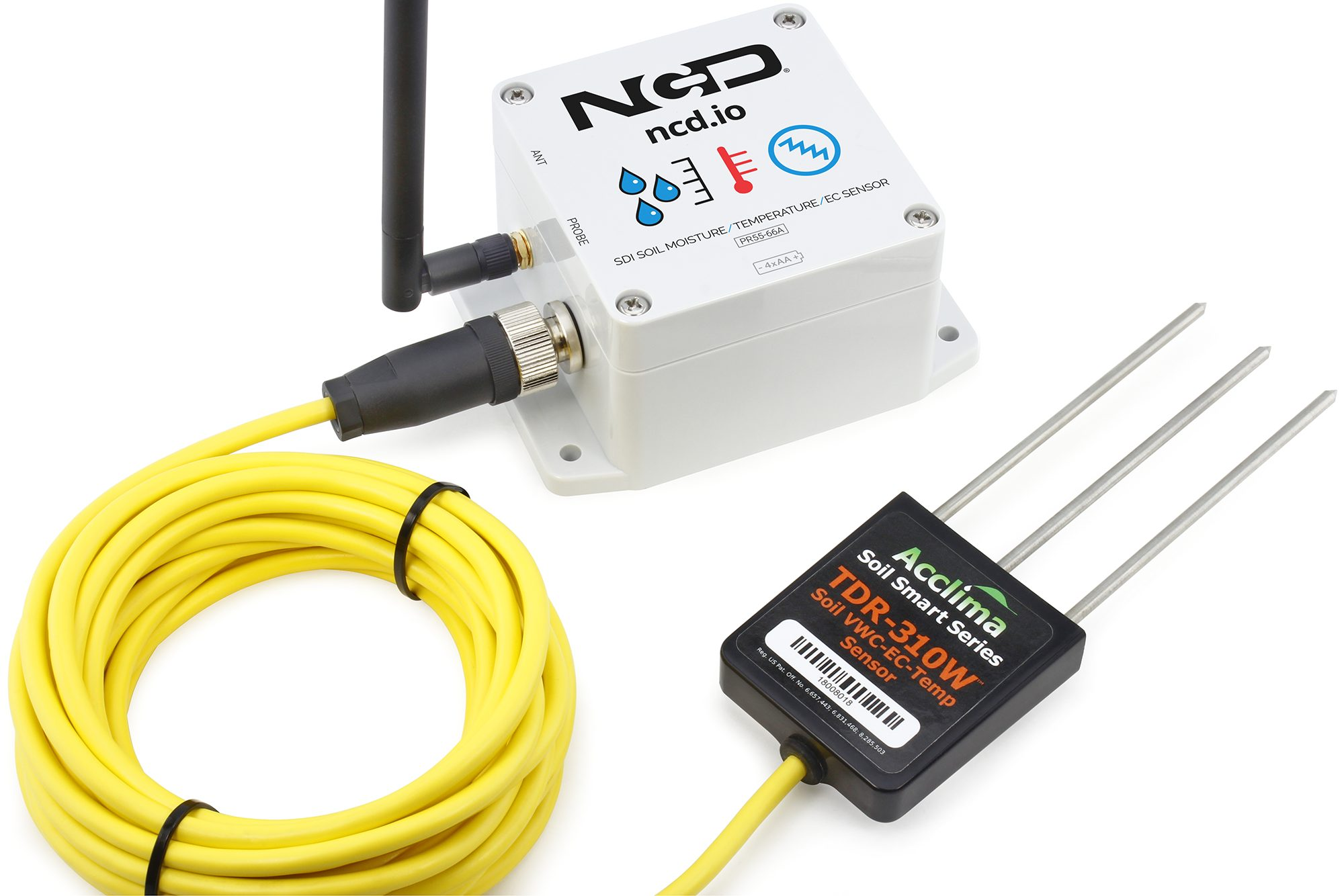

SDI Soil Moisture Temperature EC Transmitter

Wireless Soil Moisture Temperature EC Sensor for Indoor Outdoor Use
Industrial Grade 1 Channel IoT Soil Moisture Temperature EC Sensor
Work With Any SDI Probe, Tested with Acclima Soil Sensor
SDI Probe is NOT included

Ultrasonic Long Range Wireless

Industrial Grade Ultrasonic Tank Level Sensor
Reading-to-Reading stability of 1mm at 1 Meter (typical)
500 to 9999mm Measurement Range with 1mm Resolution
40 to 499mm Measurement Range with Reduced Reliability
Target Size Compensation for Greater Consistency and Accuracy
Fully Calibrated and Linearized with Temperature Compensation
