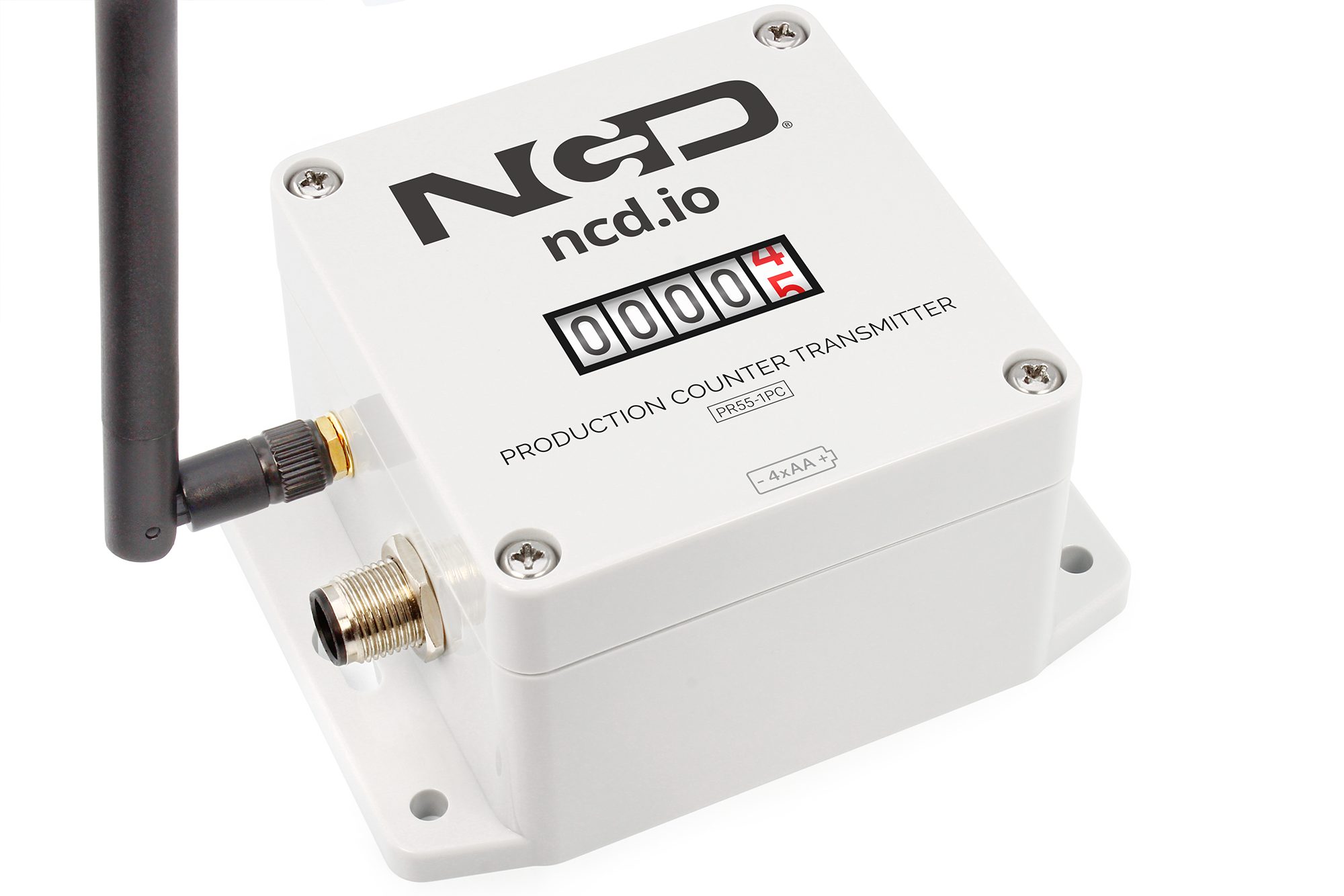

Production Counter Transmitter

Industrial Grade Single Channel 32-Bit Counter with Reset Input
Minimum Detectable Pulse Width of 100 msec
Highly Accurate Pulse Counting with Low Latency Transmission
Adjustable Counting Threshold for Transmission (factory configurable)

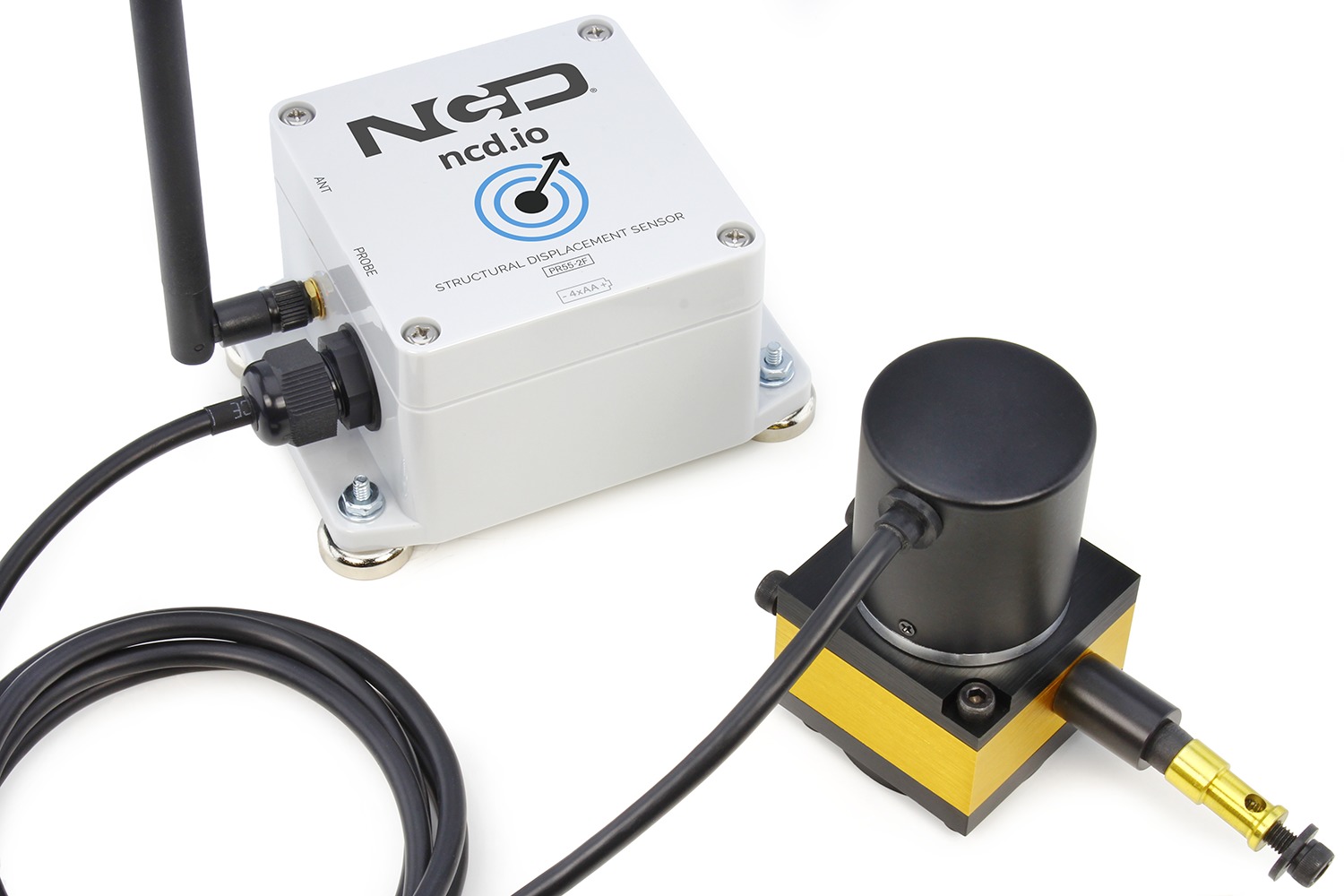

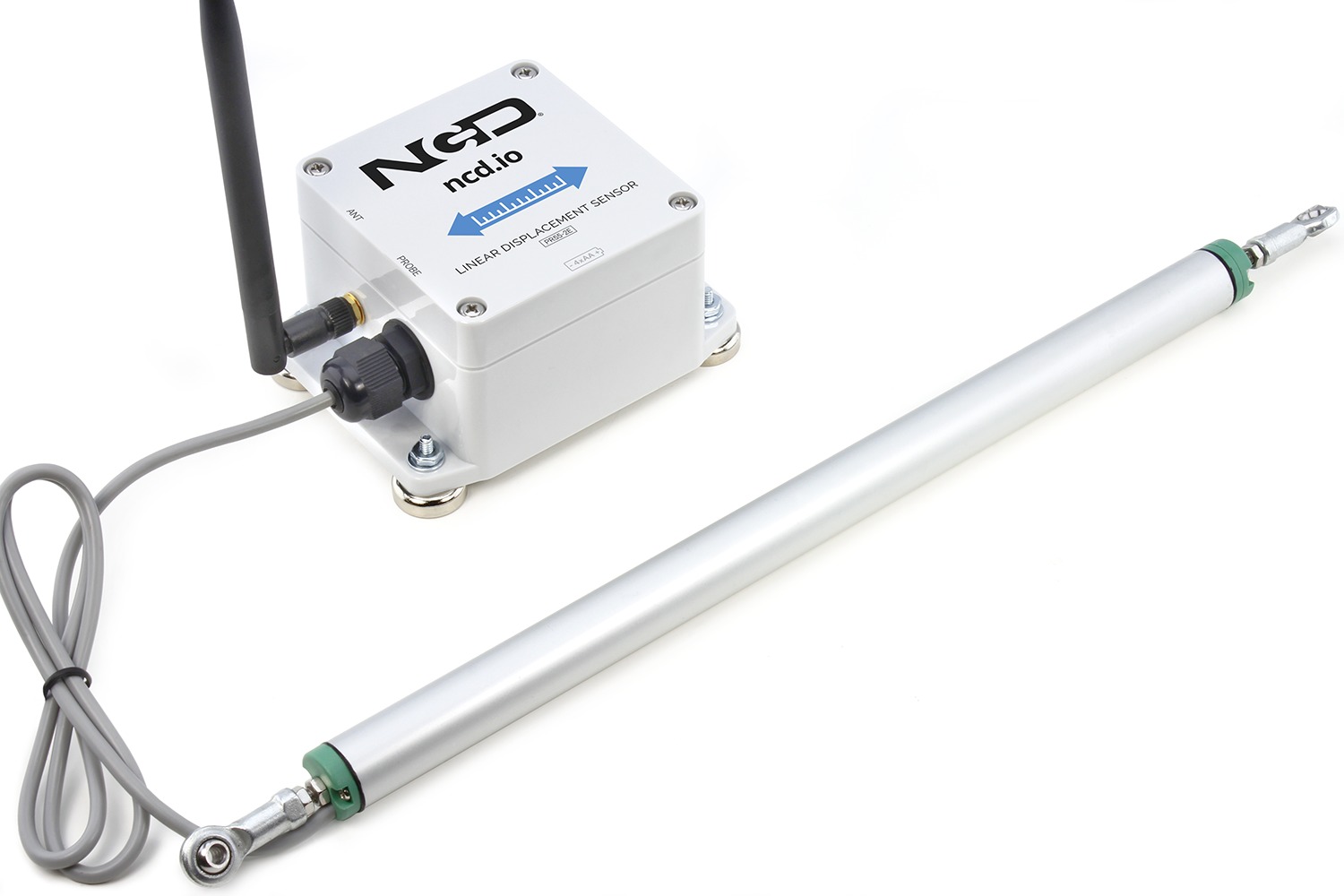

Linear Displacement Sensor

Wireless Linear Displacement Sensor for Structural Monitoring
Industrial Grade IoT Displacement Sensor with Max Speed 5m/Sec
10-bit Resolution ±2 LSB Absolute Accuracy & Linear Precision 0.2% FS
Auto ADC Sample Transmission on Level Change

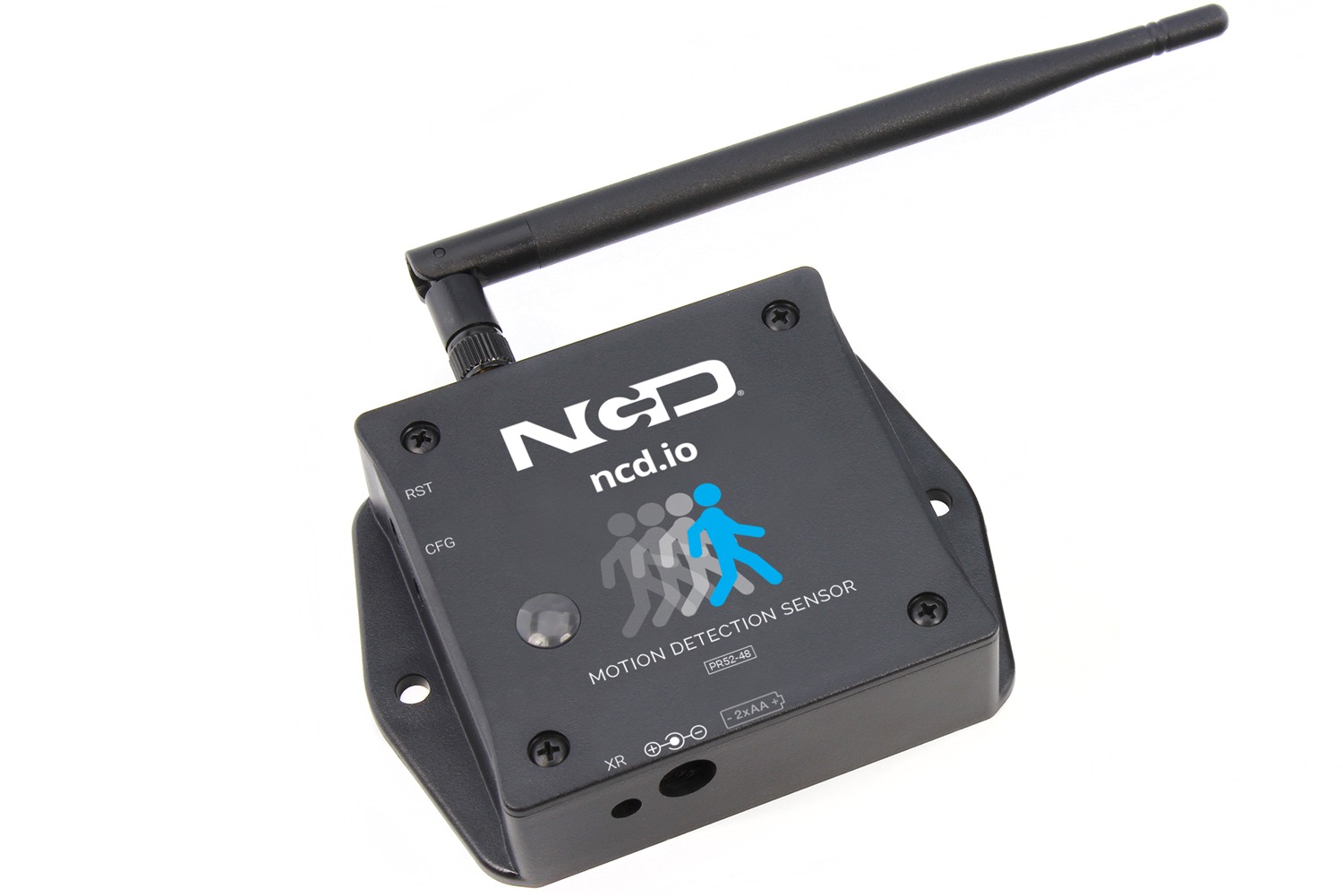

PIR Motion Detection Sensor

Industrial Grade IoT Motion Detection Sensor
Configurable Detection Frequency/Sensitivity
Uses Interrupts for Motion detection with very little power consumption
Measuring range: 5 meter
Custom Detection Range and Angle Options Avilable
Operating Temperature Range -40 to +70 °C

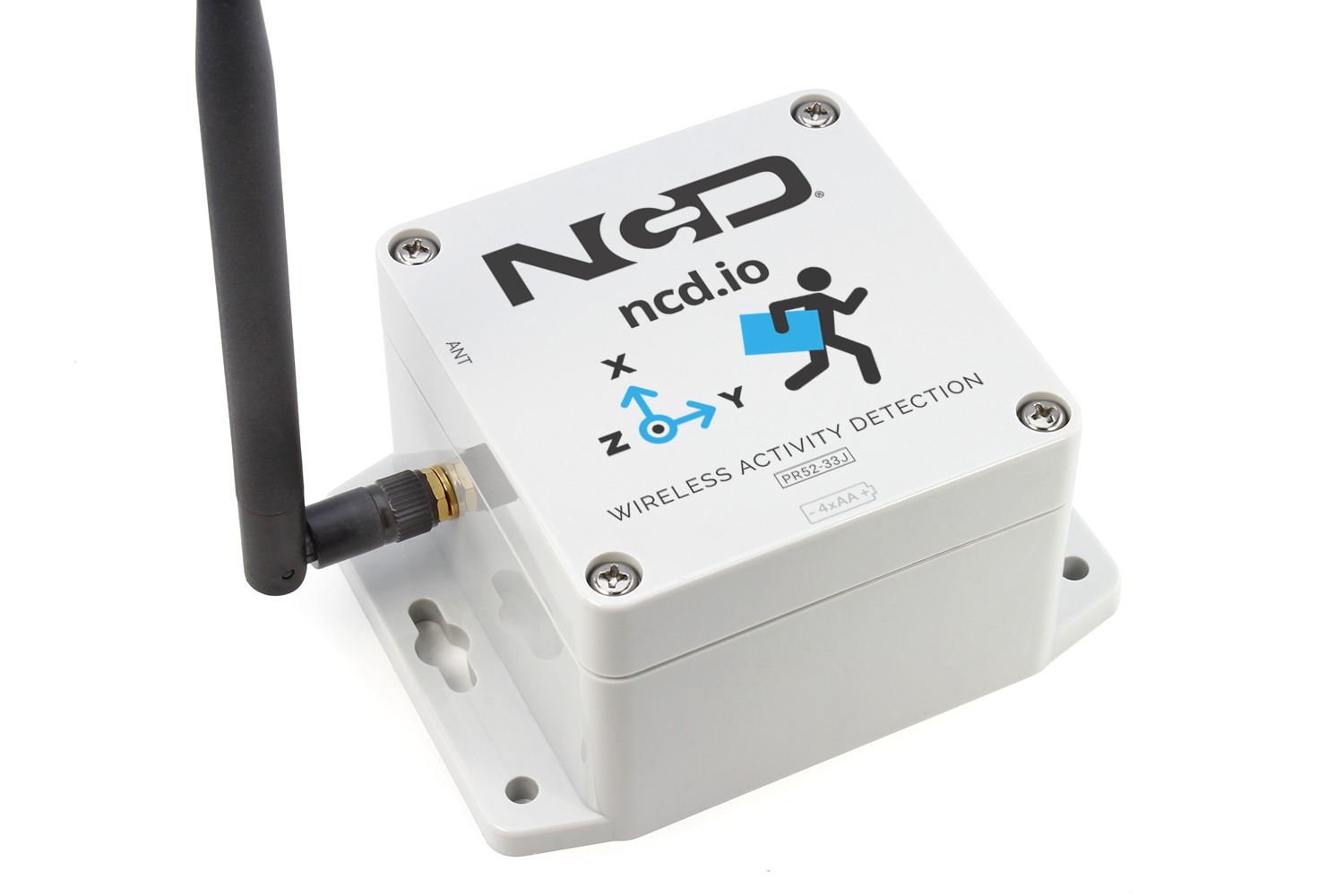

Activity Detection Sensor

Industrial Grade Accelerometer with 3-axis for Activity Detection
Configurable Activity Detection Parameters with Interrupts
Configurable Acceleration Range ±2g to ±16g
Configurable Interrupt Threshold ±16mg to ±15.3g
Configurable Data Rate 1Hz to 5.37KHz
Configurable Interrupt Duration 200us to 1sec
Customizable Interrupt Types with Combinations

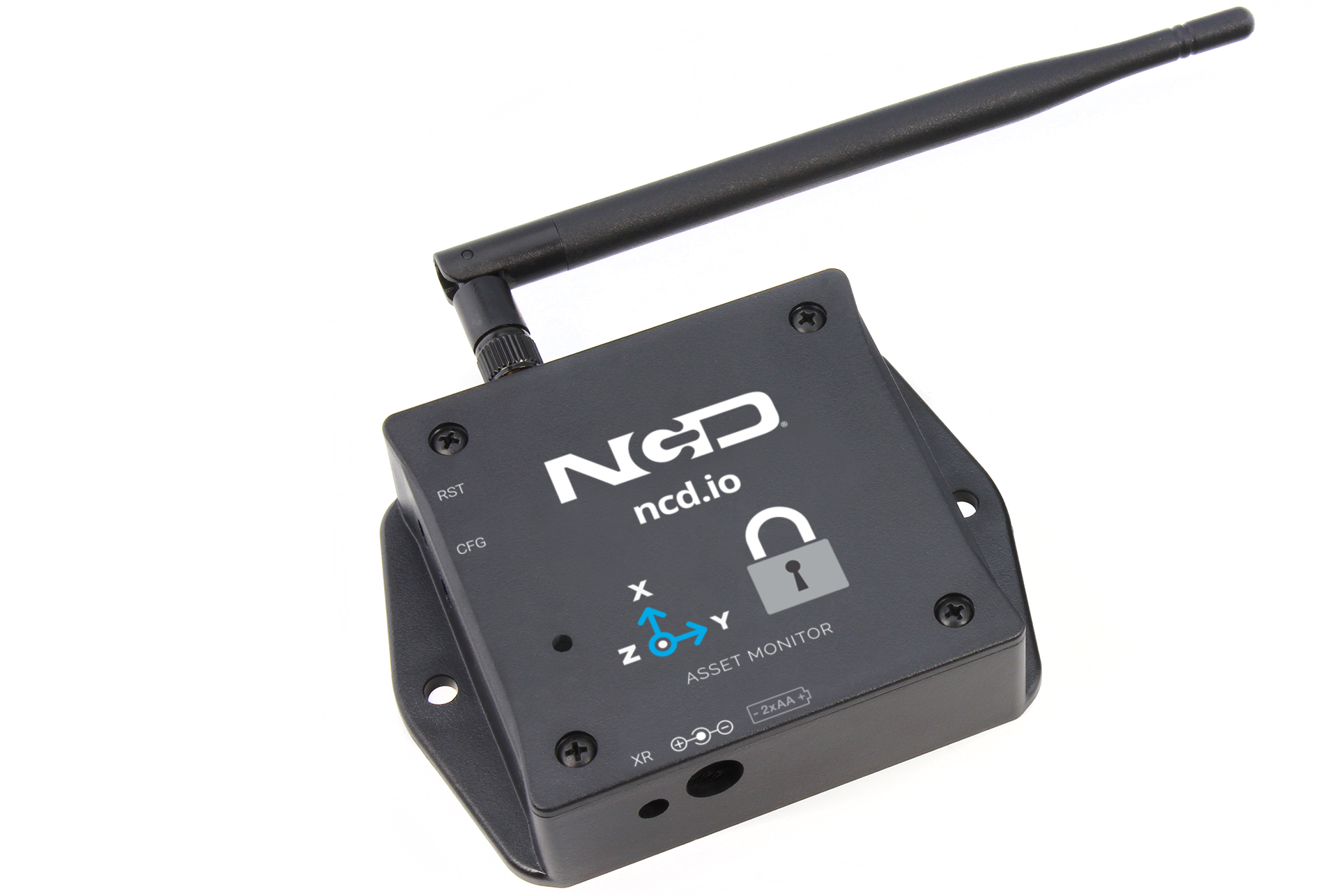

Asset Monitor Sensor

Industrial Grade Sensor with 3-axis Accelerometer for Asset Monitoring
Configurable Asset Monitoring Parameters
Keep Track of Asset Movement with Low Power Consumption
Configurable Acceleration Range ±2g to ±16g
Configurable Interrupt Threshold ±16mg to ±15.3g
Configurable Data Rate 1Hz to 5.37KHz
Configurable Interrupt Duration 200us to 1sec
Customizable Interrupt Types and Combinations
Operating Temperature Range -40 to +85 °C

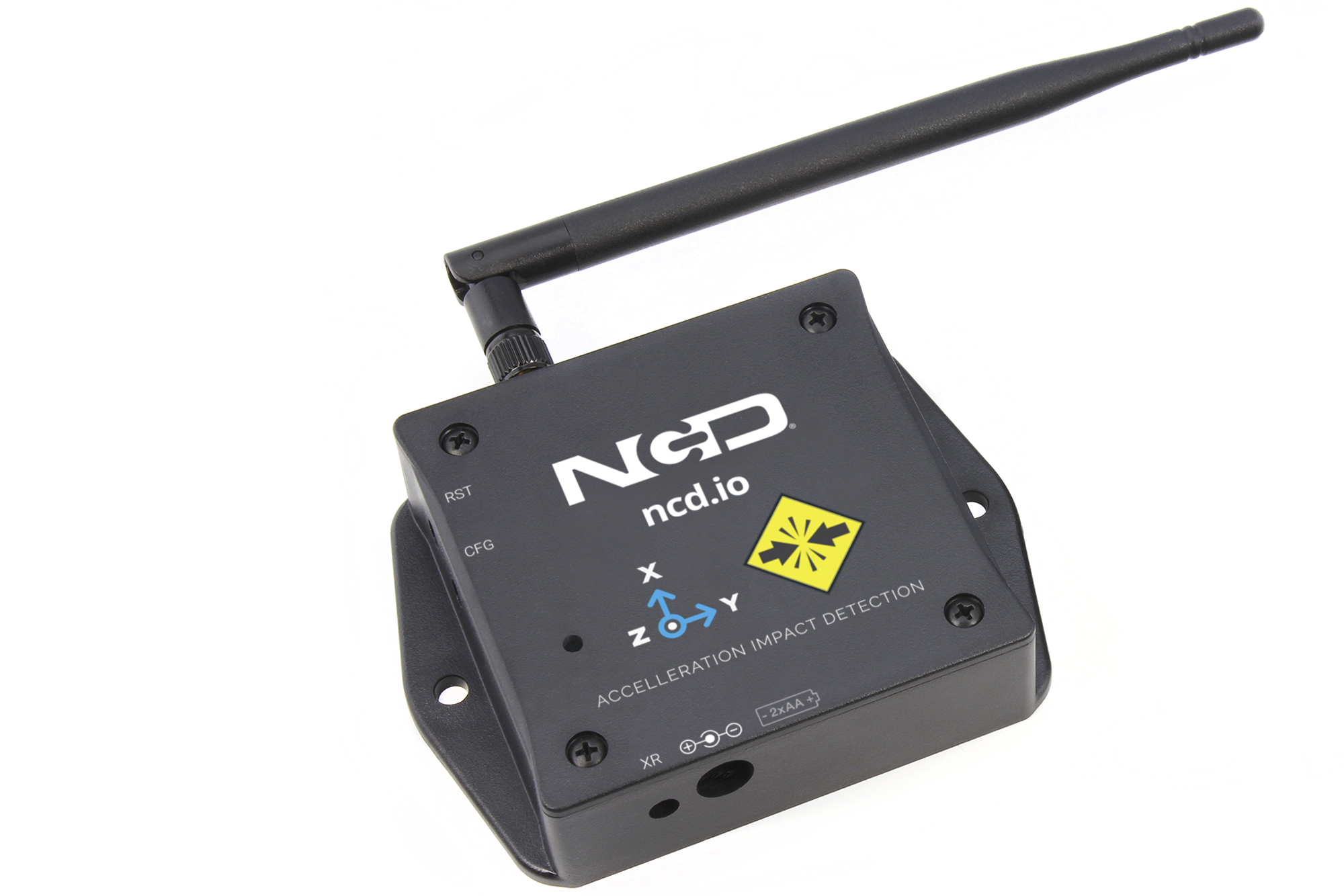

Acceleration and Impact Detection Sensor

Industrial Grade Impact Sensor with 3-Axis Accelerometer
Configurable Impact Detection Parameters
Uses Low-Power Interrupts for Impact Detection
Sends up to 2 Extra Samples for Acceleration History
Configurable Acceleration Range ±2g to ±16g
Configurable Interrupt Threshold ±16mg to ±15.3g
Configurable Data Rate 1Hz to 5.37KHz
Configurable Interrupt Duration 200us to 1sec

Vibration And Temperature Sensor

Industrial Grade 3-axis Vibration Sensor
Samples RMS, MAX and MIN g vibration
Vibration Range ±16g and Sample Rate up to 952Hz
Noise Removal using Low-Pass Filter
Frequency Range (Bandwidth) up to 408Hz

Accelerometer Gyro Magneto & Temperature Sensorr

Industrial Grade Sensor with 3-axis Acceleration, 3-axis Angular Rate, 3-axis Magnetic Gauss and Temperature Output
Acceleration Range up to ±16g
Configurable Acceleration Resolution 0.061 to 0.732mg
Angular Rate Range up to ±2000dps
Configurable Angular Rate Resolution 8.75 to 70dps
Magnetic gauss Range up to ±16gauss
Configurable Magnetometer Resolution 0.14 to 0.58mgauss

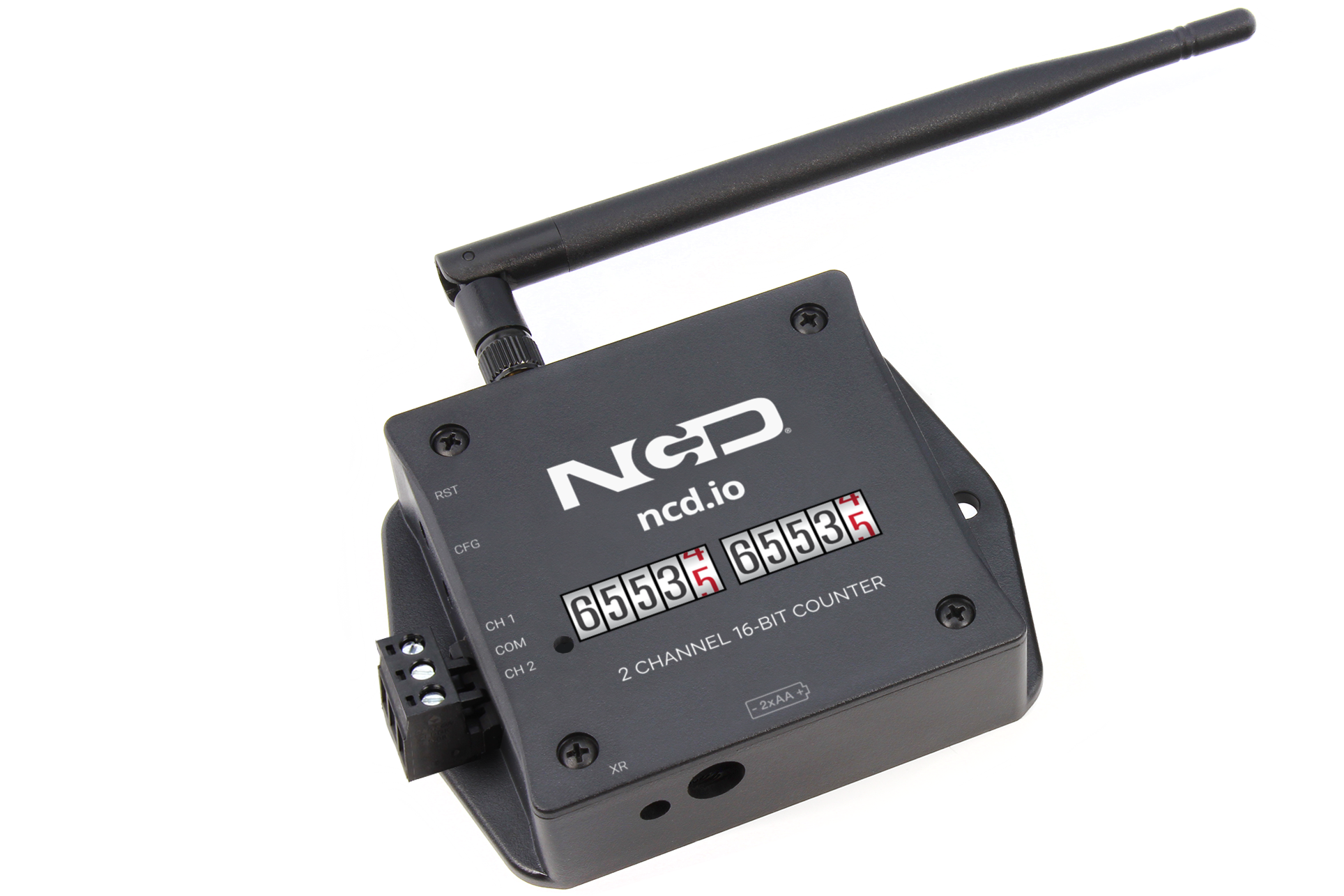

Two Channel Counter Transmitter

Industrial Grade Dual Channel 16-Bit Counter
Minimum Detectable Pulse Width of 100 msec
Highly Accurate Pulse Counting with Low Latency Transmission
Adjustable Counting Threshold for Transmission (factory conf

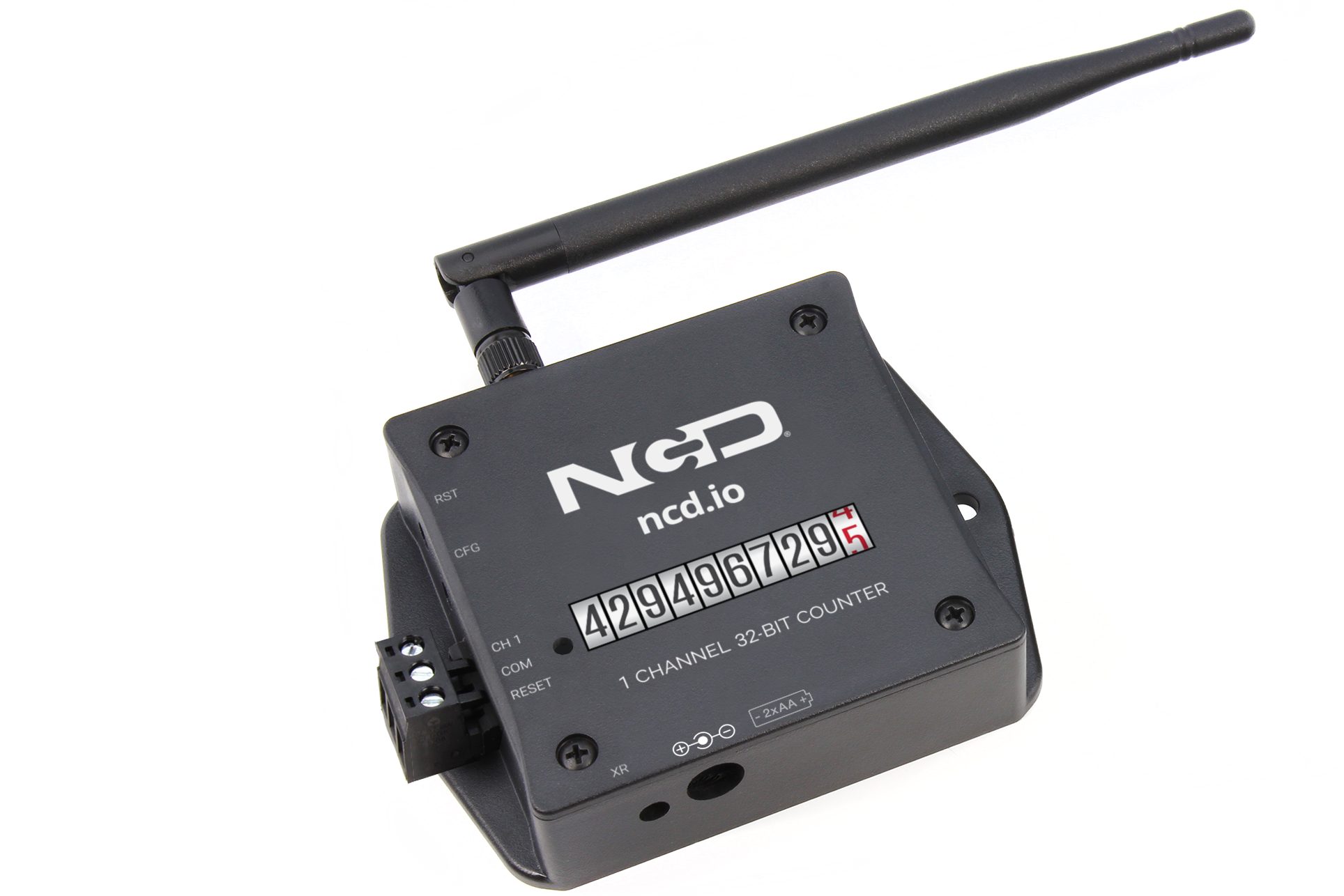

One Channel Counter Transmitter

Industrial Grade Single Channel 32-Bit Counter with Reset Input
Minimum Detectable Pulse Width of 100 msec
Highly Accurate Pulse Counting with Low Latency Transmission
Adjustable Counting Threshold for Transmission (factory configurable)

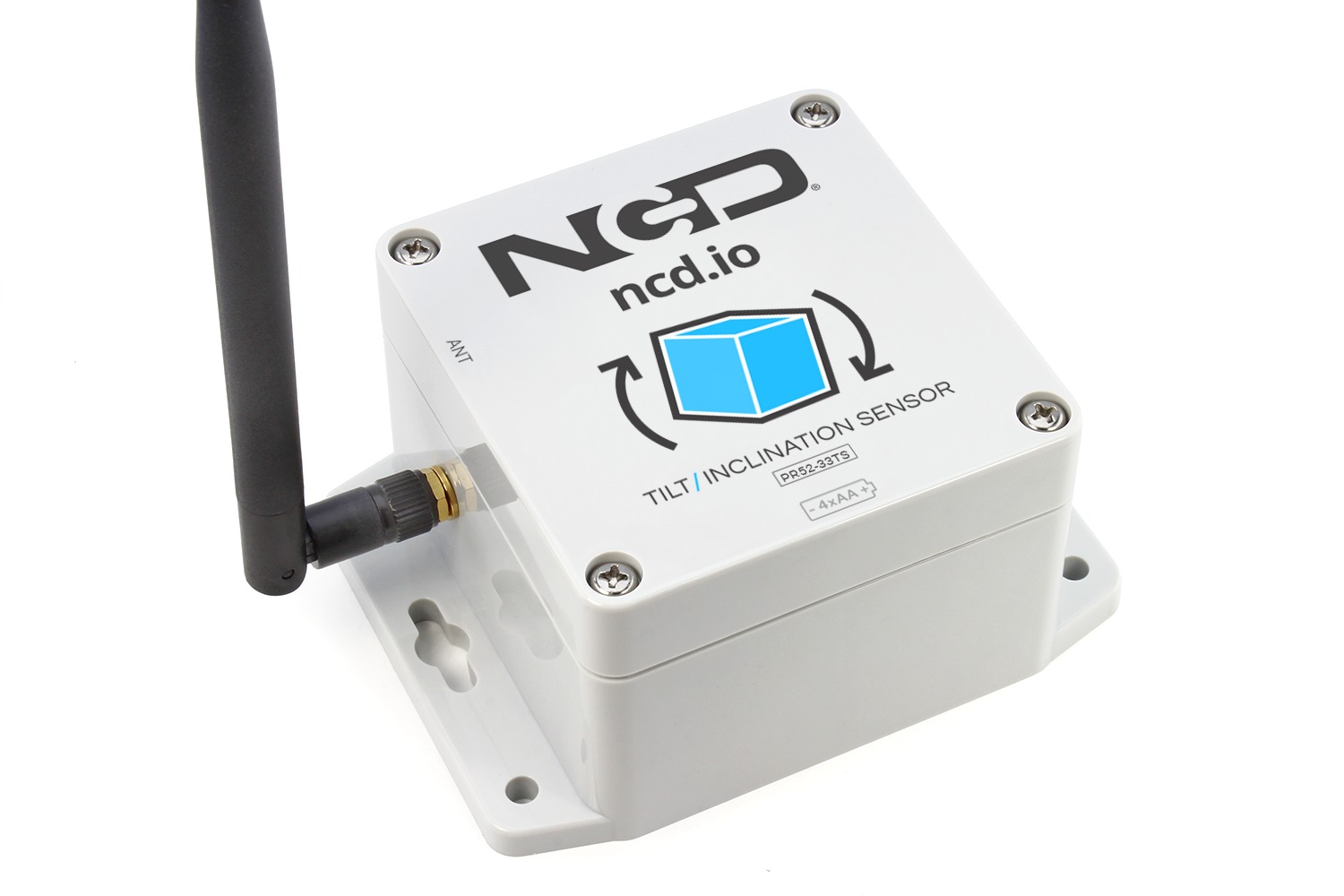

Tilt And Inclinometer Sensor

Industrial Grade IP65 Tilt Sensor with Roll and Pitch Detection
Configurable Roll and Pitch Angle Parameters
Uses Interrupts for Tilt detection with very little power consumption
Measuring range: Roll: ±90°, Pitch: ±90° ( Accuracy ±2°)
Angle detection resolution ±0.5° for high-precision application
Operating Temperature Range -40 to +85 °C

Activity Detector

Industrial Grade Accelerometer with 3-axis for Activity Detection
Configurable Activity Detection Parameters with Interrupts
Configurable Acceleration Range ±2g to ±16g
Configurable Interrupt Threshold ±16mg to ±15.3g
Configurable Data Rate 1Hz to 5.37KHz
Configurable Interrupt Duration 200us to 1sec
Customizable Interrupt Types with Combinations
Wall-Mounted or Magnet Mounted IP65 Rated Enclosure

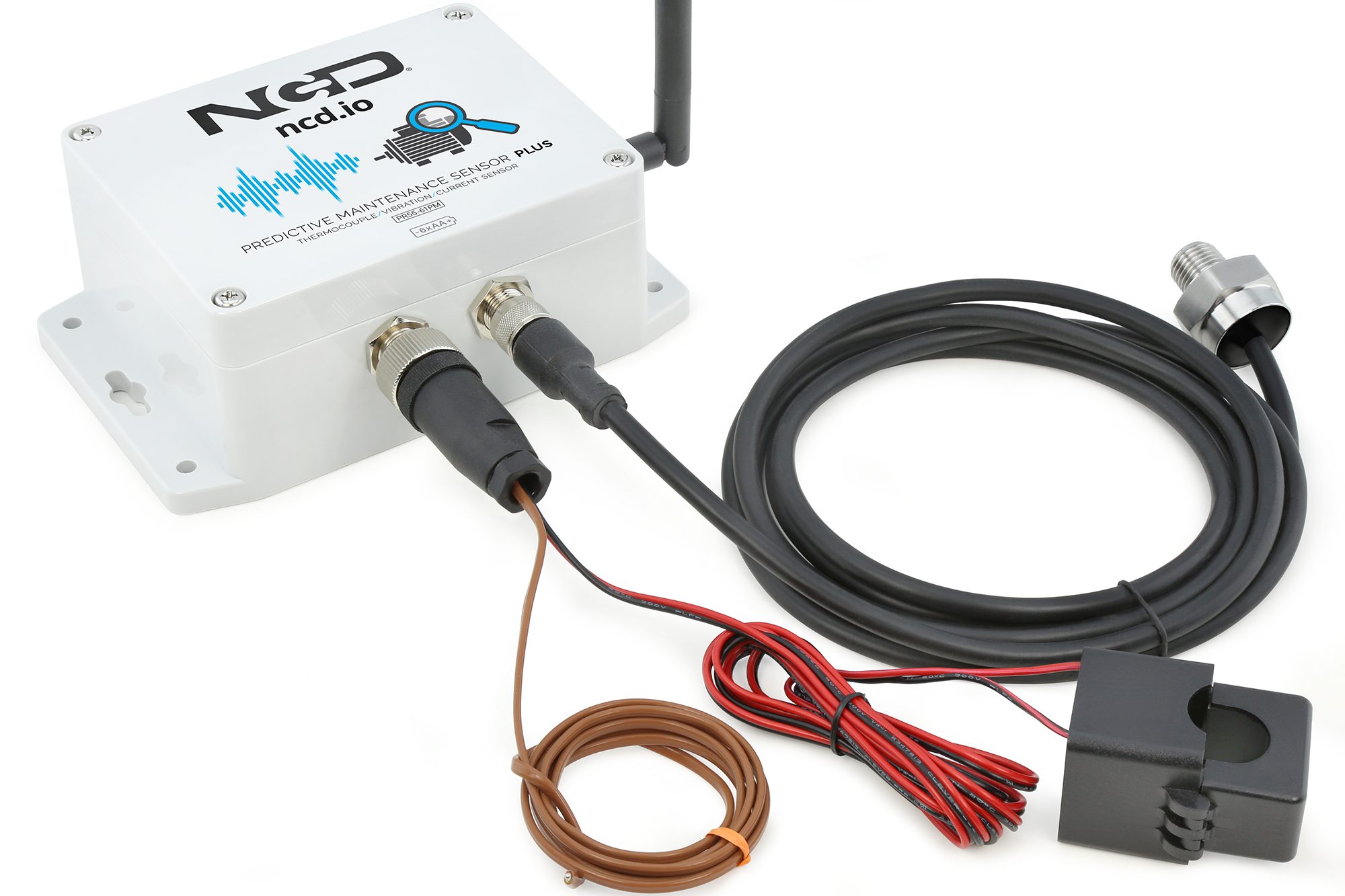

Predictive Maintenance Sensor V3

Industrial Grade IoT Wireless Predictive Maintenance Sensor
High Grade K type thermocouple Connector and Probe
Thermocouple Rating of 260°C (500°F) with ±2.2°C Accuracy
AC Current Range up to 100A RMS Measurement
Calculates RMS and MAX g Vibration
Calculates RMS Velocity Vibration
Calculates RMS Displacement
Calculates Peak Vibration Frequency
Raw Time Domain Data for FFT analysis
In Built FFT Analysis
Noise Removal using Low-pass And High Pass Filter
Frequency Range (Bandwidth) 1.56Hz ~ 6.4kHz
Vibration Sample Rate up to 25.6kHz
Encrypted Communication with 2 Mile Wireless Range
Vibration Probe Operating Temperature Range -40 to +125 °C
Wall-Mounted or Magnet Mounted IP65 Rated Enclosure
Vibration Sensor with External Probe Option
Multiple Probe Mounting Option 1/4 NPT, 1/4-28 UNF, And Magnet Mount

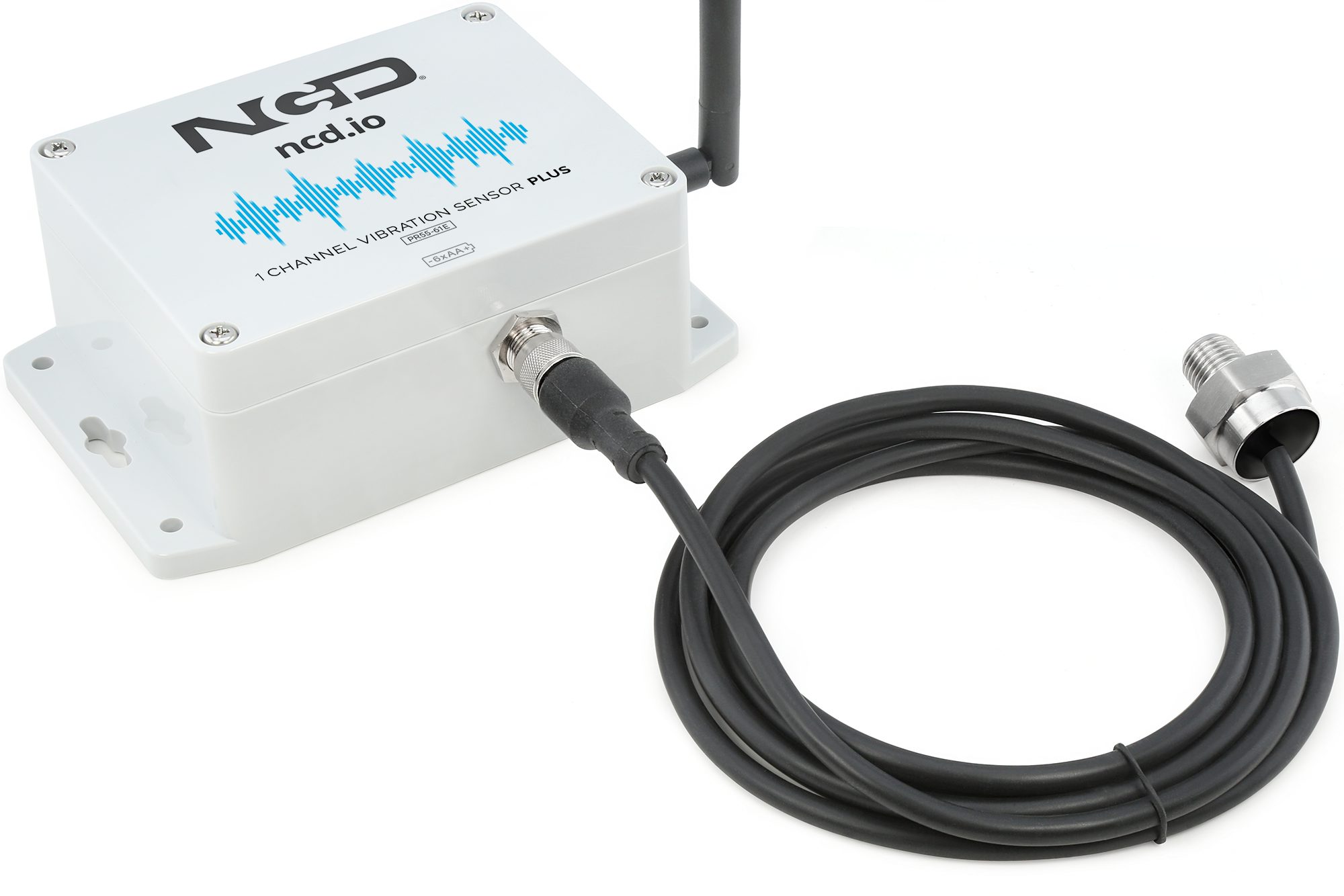

Vibration Temperature Sensor V3

Industrial Grade 3-axis MEMS Vibration Sensor with ±16g Range
Calculates RMS and MAX g Vibration
Calculates RMS Velocity Vibration
Calculates RMS Displacement
Calculates Peak Vibration Frequency
Raw Time Domain Data for FFT analysis
In Built FFT Analysis
Noise Removal using Low-pass And High Pass Filter
Frequency Range (Bandwidth) 1.56Hz ~ 6.4kHz
Sample Rate up to 25,600Hz
Encrypted Communication with 2 Mile Wireless Range
Vibration Probe Operating Temperature Range -40 to +125 °C
Wall-Mounted or Magnet Mounted IP65 Rated Enclosure
Vibration Sensor with External Probe Option
Multiple Probe Mounting Option 1/4 NPT, 1/4-28 UNF, And Magnet Mount

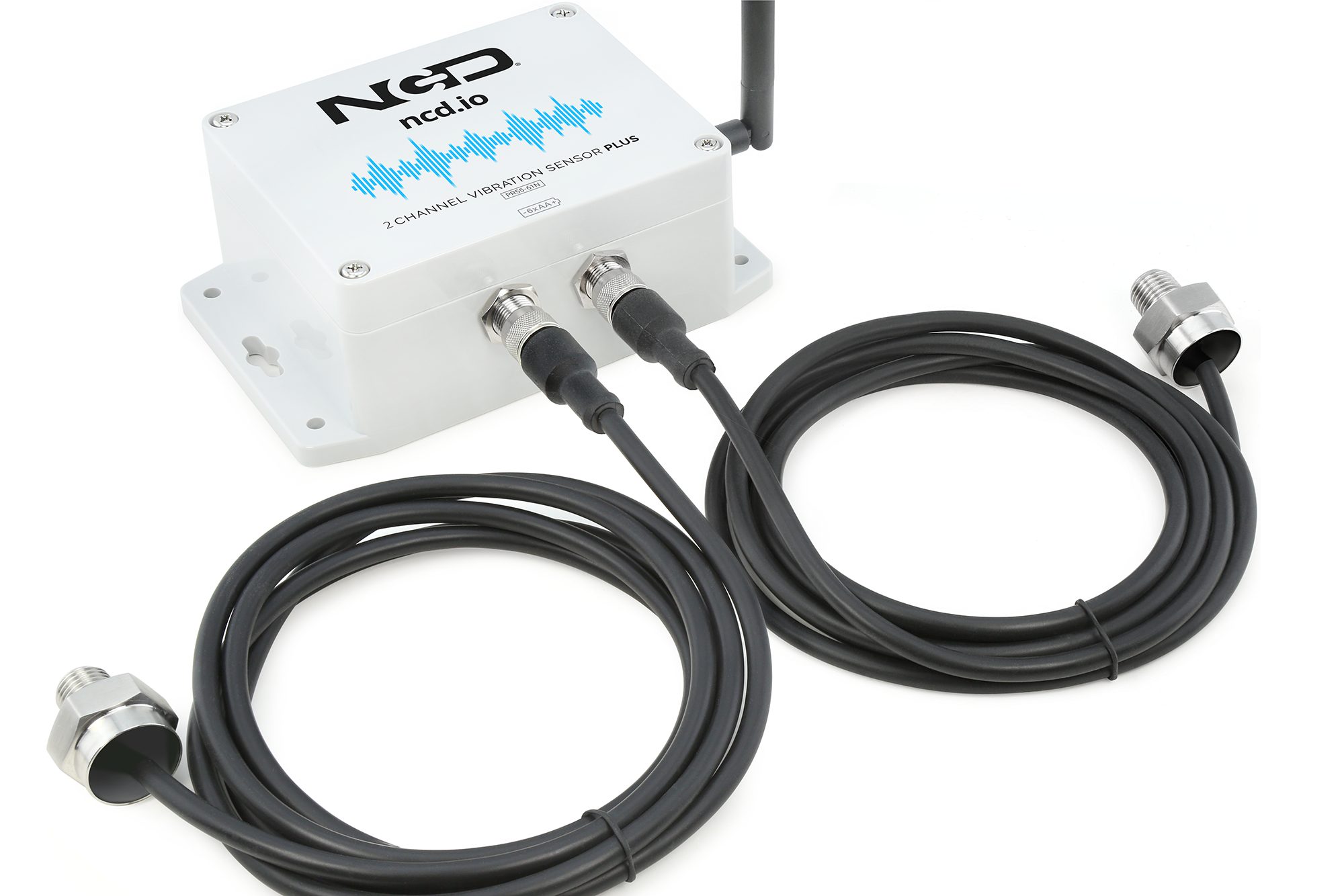

2 Channel Vibration Temperature Sensor V3

Industrial Grade 3-axis Vibration Sensor with ±16g Range
Calculates RMS and MAX g Vibration
Calculates RMS Velocity Vibration
Calculates RMS Displacement
Calculates Peak Vibration Frequency
Raw Time Domain Data for FFT analysis
In Built FFT Analysis
Noise Removal using Low-pass And High Pass Filter
Frequency Range (Bandwidth) 1.56Hz ~ 6.4kHz
Frequency Range (Bandwidth) up to 8,000 Hz In Time Domain Mode
Sample Rate up to 25,600Hz
Encrypted Communication with 2 Mile Wireless Range
Vibration Probe Operating Temperature Range -40 to +125 °C
Wall-Mounted or Magnet Mounted IP65 Rated Enclosure
Vibration Sensor with External Probe Option
Multiple Probe Mounting Option 1/4 NPT, 1/4-28 UNF, And Magnet Mount

Structural Monitoring Sensor

Wireless Structural Monitoring Sensor for Structural Monitoring
Industrial Grade IoT Displacement Sensor
10-bit Resolution ±2 LSB Absolute Accuracy & Precision ±0.1% FS
Auto ADC Sample Transmission on Level Change
Configurable 10% Analog Voltage Change Detection
